Contact Voltage Dropping Measurement Instrument Electrical Appliance Tester No Screw Terminals

Contact Voltage Dropping Measurement Instrument Electrical Appliance Tester No Screw Terminals

Brand Name: HongCe
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30 Pcs/Month
Detail Information
Place of Origin:
China
Certification:
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Test Object:
No Screw Terminal
Test:
Voltage Drop Measurement
Power Supply:
220VAC 50Hz
Test Current:
AC 1~100A
Voltage Drop Measurement:
0~199.9±1mv
Standard:
IEC 60884-1
Packaging Details:
Plywood
Highlight:

electrical appliance tester

,

portable appliance testing equipment

Product Description



Contact Voltage Dropping Measurement Instrument Electrical Appliance Tester No Screw Terminals





Production introduction:



  Contact voltage drop tester according to the standard IEC 60884-1, GB2099 - 96 is terms corresponding requirements for the test socket without screw terminals contact voltage drop and disconnect the power plug after finish bending test and measurement terminal contact voltage drop.



Main technical parameters:



Power supply AC220V 5A 50Hz
Test current AC 1-100A±3%
Test Contact voltage drop measurement
Voltage drop range

0-199.9mV±3%

Test object

no screw terminals

Display

digital
Station

1 station

Standard

IEC 60884-1

Dimension

420mm*160mm*360mm

Environment +5~+40 centig



Features:

The whole machine adopts steel structure, surface coating and flange process uses a combination of both, fixtures and work elements using aluminum anode frosted, hard chrome plated weights, the use of electric work and offer an LCD panel operation and meter operating modes selected by the customer, the bending angle can make precise control, convenient and simple to operate.

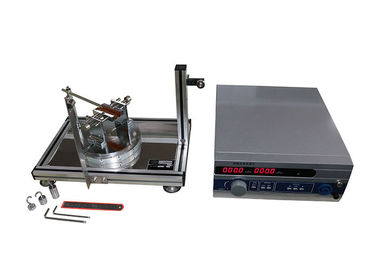

Photos



Contact Voltage Dropping Measurement Instrument Electrical Appliance Tester No Screw Terminals 0

Contact Voltage Dropping Measurement Instrument Electrical Appliance Tester No Screw Terminals 1
