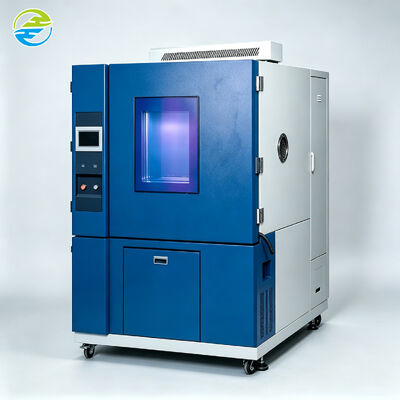

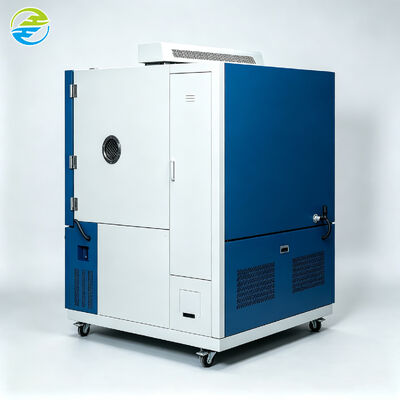

Ultra Low Temperature Test Chamber Cascade Refrigeration 150L Programmable -70°C to +150°C

HongCe Ultra Low Temperature Test Chamber provides a programmable test environment from -70°C to +150°C using a two-stage cascade refrigeration system. The 150L chamber is designed for cold resistance testing, low-temperature storage evaluation, and extreme cold condition simulation of electronic components, automotive parts, new energy battery materials, and scientific research samples.

The cascade refrigeration design delivers stable deep-low-temperature performance down to -70°C, meeting the requirements of IEC 60068-2-1 Test A cold testing with reliable long-term operation.

Products intended for cold regions, high-altitude environments, or winter operation must be verified at temperatures far below standard laboratory conditions. A single-stage refrigeration system struggles to maintain stable performance below approximately -40°C, which is why deep low temperature testing requires a cascade design.

The HongCe Ultra Low Temperature Test Chamber uses a two-stage cascade refrigeration circuit in which R404A and R23 work in separate loops connected by a cascade condenser. This architecture allows the chamber to reach and hold -70°C with temperature fluctuation of ±0.5°C, providing a dependable platform for ultra-low-temperature testing and material evaluation.

• Cascade Refrigeration System: Two-stage R404A + R23 cascade circuit for stable -70°C deep low temperature performance.
• Wide Temperature Range: -70°C to +150°C covering extreme cold and dry heat testing in one unit.
• Programmable Control: 7-inch color touch screen PLC with multi-step test profiles, timing control and real-time curve display.
• Reliable Cold Performance: Imported compressors, cascade heat exchanger, and hot-gas bypass defrost for continuous low-temperature operation.
• Compact Benchtop Design: 150L volume with casters and leveling feet for flexible laboratory placement.
• Complete Safety Protection: Over-temperature, compressor overload, refrigerant high/low pressure, and power phase sequence protection.

• IEC 60068-2-1:2025 - Test A: Cold (low temperature testing)
• IEC 60068-2-2:2025 - Test B: Dry heat
• GB/T 2423.1 - Environmental testing: Test A: Cold
• MIL-STD-810H Method 502 - Low temperature

• Cascade Refrigeration: Two independent refrigerant loops connected by a cascade heat exchanger extend the achievable low temperature limit to -70°C.
• Hot-Gas Bypass Defrost: Prevents evaporator frost accumulation during long low-temperature soak periods.
• Deep Cold Stability: Precision expansion valve and oil separator maintain consistent cooling capacity and compressor lubrication at low evaporation temperatures.
• Programmable Cold Testing: Multi-step profiles support cold soak, ramp, and cycle testing per IEC 60068-2-1 Test A.

Single-stage refrigeration systems lose efficiency and stability below about -40°C. A two-stage cascade system uses a second low-temperature loop (R23) to reach and hold -70°C reliably.

Automotive electronics, aerospace components, lithium battery materials, rubber and plastic parts, sensors, and cold-region consumer products.

This model is a dry low-temperature chamber. For combined temperature and humidity testing, please refer to the HongCe temperature humidity chamber series.
