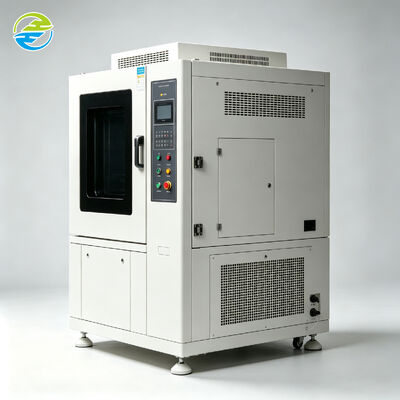

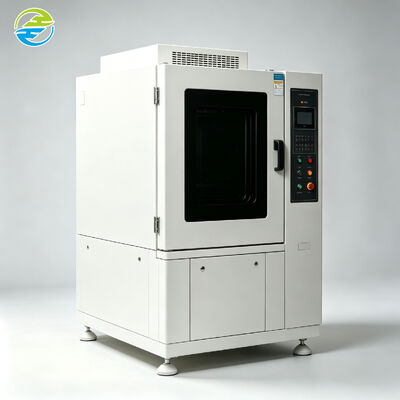

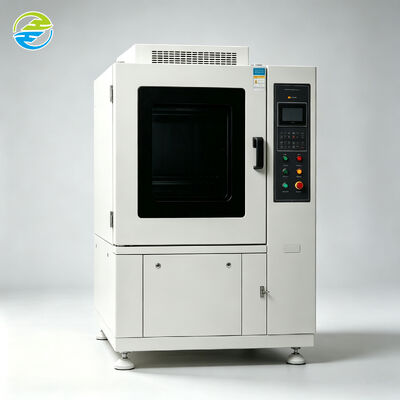

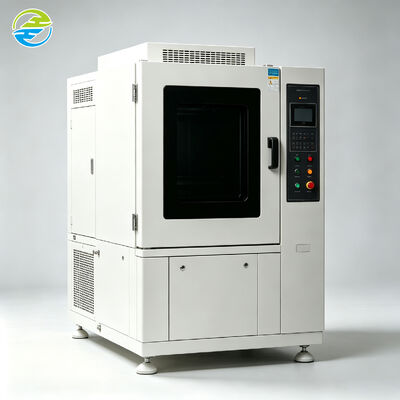

Rapid Temperature Change Test Chamber 5°C/min Linear Ramp -40°C to +150°C 225L Programmable

HongCe Rapid Temperature Change Test Chamber is a programmable environmental testing system designed for thermal cycling and temperature change testing of electronic, automotive, and industrial components. The chamber delivers a linear temperature change rate up to 5°C/min within a temperature range of -40°C to +150°C, allowing engineers to reproduce rapid thermal stress conditions in a controlled laboratory environment.

With a 225L test volume, SUS304 stainless steel interior, and a 7-inch color touch screen PLC controller, this chamber suits R&D verification, design qualification, and routine reliability screening applications that require repeatable heating and cooling ramps.

Many product failures occur not at a single extreme temperature but during temperature transitions. Thermal expansion and contraction, solder joint stress, and material fatigue are typically triggered when a product is cycled rapidly between hot and cold conditions.

The HongCe Rapid Temperature Change Test Chamber addresses this by combining a high-capacity refrigeration system, balanced heating elements, and a linear ramp control algorithm. The result is a chamber that maintains a defined temperature change rate across the full -40°C to +150°C range, giving test engineers a repeatable platform for thermal cycling, temperature shock simulation, and environmental stress screening.

• Linear Temperature Change Rate: Adjustable 1-5°C/min linear ramp, suitable for IEC 60068-2-14 Test N temperature change testing.
• Wide Temperature Range: -40°C to +150°C with temperature fluctuation of ±0.5°C and uniformity of ±2.0°C.
• Programmable PLC Control: 7-inch color touch screen with 100-step programmable test profiles, cyclic operation and alarm output.
• Robust Refrigeration System: Imported hermetic compressor with R404A refrigeration circuit designed for continuous rapid ramping duty.
• Data Management: USB data export, RS-485 and Ethernet interfaces for connection to laboratory data systems.
• Safety Protection: Over-temperature, over-current, compressor overload, refrigerant high/low pressure and door interlock protections.

• IEC 60068-2-14:2023 - Environmental testing, Part 2-14: Test N: Change of temperature
• IEC 60068-2-1:2025 - Test A: Cold
• IEC 60068-2-2:2025 - Test B: Dry heat
• GB/T 2423.22 - Environmental testing for electric and electronic products: Change of temperature

• Linear Ramp Control: PID + fuzzy logic algorithm maintains the set temperature change rate without overshoot.
• Rapid Ramp Refrigeration: Oversized evaporator and expansion valve matched to the compressor for sustained cooling capacity during ramps.
• Thermal Cycling Profiles: Multi-step programming supports soak, ramp, and cycle operations with real-time curve display.
• Environmental Stress Screening: Designed for accelerated reliability testing that reveals latent defects before shipment.

Guangzhou HongCe Equipment Co., Ltd. has been engaged in the development and manufacture of testing equipment and production-line testing systems since 2003. The company focuses on environmental testing, vacuum technology, leak testing, automatic control, and customized production-line solutions, with equipment developed with reference to GB, IEC, EN, UL, VDE, BS, AS and ISO requirements.

For customers purchasing temperature test chambers, HongCe provides equipment + process + integration support, from a single chamber to a complete environmental laboratory solution.
