IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment

IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment

IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment

Brand Name: HongCe
Model Number: HT-I09
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: 20 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration certificate(cost additional)
Product Name:
Test Pin
Warranty:
1 Year
Standards:
IEC61032,IEC60065 And Etc.
Material:
Nylon And Stainless Steel
Handle Length:
20
Metal Pin Length:
15 (0, -0.1)
Baffle Diameter:
Ф25±0.2
Baffle Thickness:
4
Packaging Details:
Aluminum box
Highlight:

IEC 60065 test finger probe

,

precision test finger for electrical equipment

,

safety verification test probe

Product Description
IEC 60065 Test Pin for Accessibility & Safety Verification
Precision Test Finger Probe for Electrical & IT Equipment
Product Overview
The IEC 60065 Test Pin is a precision-engineered Test Finger Probe designed to verify accessibility and safety of electrical, electronic, and information technology equipment. Manufactured directly by HongCe, this probe ensures reliable, repeatable testing results fully compliant with international safety standards. It is an essential tool for laboratories, certification bodies, and manufacturers focused on product compliance and user safety.
Compliance Standards
Conforms to IEC 60065 clause 9.1.1.2, IEC61032 figure 9 Test probe13, IEC60950-1 figure 2B, IEC60335.
Key Features & Advantages
  • Precision-machined probe tip with stable dimensional tolerance
  • Fully compliant with IEC 60065 accessibility test requirements
  • Smooth surface finish to prevent false test results
  • Ergonomic insulated handle for safe and comfortable operation
  • High mechanical strength, resistant to bending and wear
  • Suitable for repetitive testing in laboratory environments
  • Manufacturer-direct supply with stable lead time
  • Customizable materials and tolerances upon request
Detectable Test Items
  • Accessibility of hazardous live parts
  • Compliance with protection against electric shock
  • Opening size safety verification
  • Mechanical design safety validation
  • Product enclosure integrity
Technical Parameters
Model/Parameter HT-I09
Item Name Short test pin probe
Metal pin tip diameter Ф3 (0, -0.05)
Metal pin tail diameter Ф4 (0, -0.05)
Metal pin length 15 (0, -0.1)
Baffle diameter Ф25±0.2 Test Finger Probe
Baffle thickness 4
Handle diameter Ф10
Handle length 20

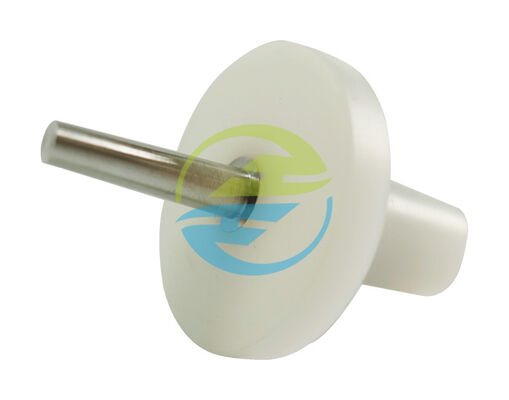

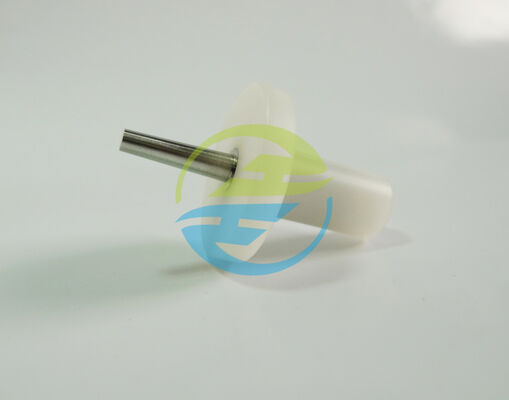

Product Images
IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment 0
IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment 1
IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment 2
