IEC60884 Standard Compliance Plug Socket Tester with 20mm Brass Button Operation and 7±0.5mm Distance for Insulating Sleeve Testing

Name: IEC60884 Standard Compliance Plug Socket Tester with 20mm Brass Button Operation and 7±0.5mm Distance for Insulating Sleeve Testing
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HC9935
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HC9935
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Standard:

IEC60884

Clause ,figure:

28.1.2，figure 40

Thermocouple:

K-type

Plug:

Customized According To The Standard

Distance From Thermocouple To Metal Part B:

7±0.5mm

Hole For Plug Pin In Metal Part B:

According To Figure 40

Packaging Details:

plywood

Highlight:

IEC60884 Standard Compliance Plug Socket Tester

20mm Brass Button Operation Plug Socket Tester

7±0.5mm Distance Insulating Sleeve Tester

Product Description

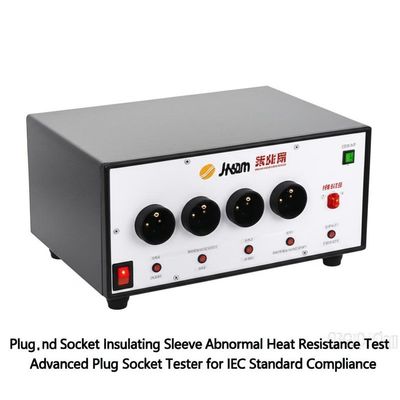

Plug and Socket Insulating Sleeve Abnormal Heat Resistance Test Equipment

Advanced Plug Socket Tester for IEC Standard Compliance

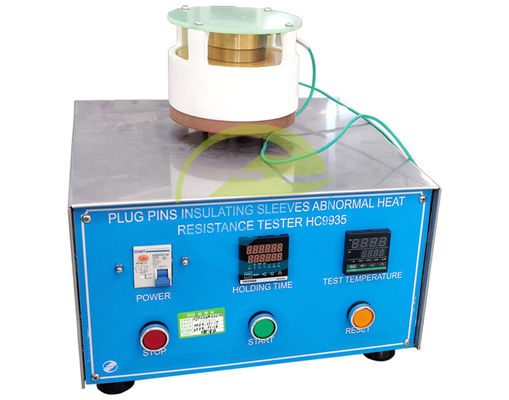

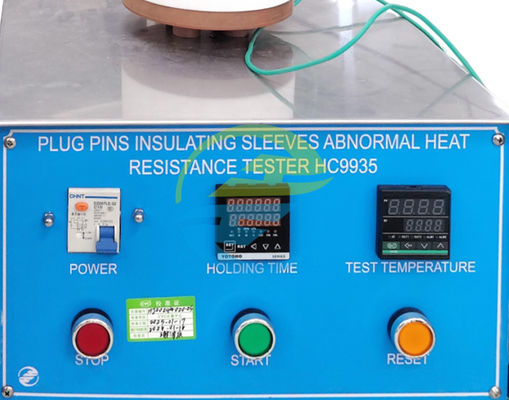

The HC9935 Plug Socket Insulating Sleeve Abnormal Heat Resistance Tester is designed for evaluating the thermal endurance and safety reliability of plug and socket insulating sleeves under abnormal heat conditions. Manufactured by HongCe, a trusted source factory in electrical testing equipment, this tester ensures compliance with international standards, guaranteeing stable quality for manufacturers and laboratories worldwide.

Compliance Standards

Standard	Description
IEC 60884-1	Plugs and socket-outlets for household and similar purposes - Part 1: General requirements \| Clause 24.2 (Abnormal heat resistance of insulation sleeves), Clause 25 (Heat and fire resistance)
IEC 60695	Fire hazard testing standards

Test Objects

Household AC plugs (rated current: 6A, 10A, 16A)
Industrial plugs (rated current: 16A, 32A, 63A)
Travel adapters (universal, EU, US, UK, Australian standards)
Power plugs (for electronics, appliances, tools)
Extension cords

Key Features

Tests resistance to heat and fire of insulating sleeves of plug pins in accordance with standard requirements.

Technical Parameters

Item	Parameters
Insulation part	5 mm thickness, round and flat, diameter equal to twice the maximum permissible dimension of the engagement face of the test sample
Metal part B (fixture)	Brass, length at least 20 mm, provide fixtures plug according to relevant standard
Distance between insulation part and metal part	3±0.2mm, ensures the air convection around the pin
Distance from thermocouple to metal part B	7±0.5mm
Hole for plug pin in metal part B	0.1 mm larger than the maximum dimensions of the pins

Every test builds trust. Safety is paramount at every moment of power flow.

Hongce understands that true quality lies not only in testing but also in the meticulous attention to detail behind each test. This plug and pin insulation sleeve abnormal heat resistance tester stems from our ongoing exploration of "safety boundaries." It features a stable temperature control system and sophisticated structural design, authentically recreating the challenges of extreme high-temperature environments, ensuring that every plug and socket can withstand the test of time and temperature.

From manufacturing laboratories in China to global certification agencies, Hongce helps every customer's product go global with reliable data. We don't just manufacture test equipment; we are committed to enhancing safety value at every temperature.
