Plug Socket Tester
Created with Pixso.

UL1054 30 Pieces 200W Halogen Filament Lamp Load Chamber For Plug Socket Switch Over Load Tester

UL1054 30 Pieces 200W Halogen Filament Lamp Load Chamber For Plug Socket Switch Over Load Tester

Brand Name: HongCe
Model Number: HC9915F
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detail Information
Place of Origin:
China
Certification:
Third party calibration certificate(cost additional)
Standard:
UL1054, UL943, IEC60669 Clause 18.3
Output Voltage:
0~250V
Output Current:
0~24A
Lamp Quantity:
30 Pieces
Packaging Details:
Plywood
Highlight:

200W Lamp Load Chamber

,

UL 1054 Lamp Load Chamber

Product Description
UL1054 Filament Lamp Load Cabinet For Overload Test With One Output Channel

Standard


UL1054,UL943,IEC60669 Clause 18.3

Application


The overLoad test is achieved by connecting the number of 30 halogen lamps rated at 200W in parallel .

Lamps of any power can be used to reach the rated load.


Technical parameters:




Input power AC 220V, 20A, 50/60Hz (It depends on customer's national requirements)
the output voltage AC 0 ~ 250V continuously adjustable,4 display instrument display, accuracy 0.5%
Output current   0~24 A(can be customed)
Test current This is achieved by connecting the number of halogen lamps rated at 200W in parallel. (Number of filament lamps: 30, switch rated current 16A);
  Number of filament lamps   30   (can be customed)

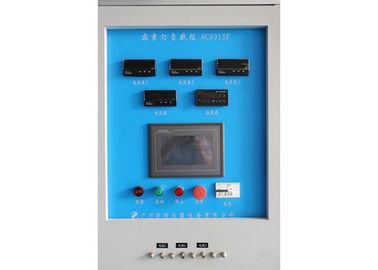

Touch screen display Test voltage, test current, number of tests, bulb failure location, warning light information.
Counter 1 ~ 999999 times can be preset
The number of output channels 1
Overtime protection with the test current continuous power circuit protection function for 5 seconds.
surge current coefficient Meet the requirements of UL1054 5.7.9, about 10-18 times.
The control plane size About 1200 × 800 × 1700 (mm)

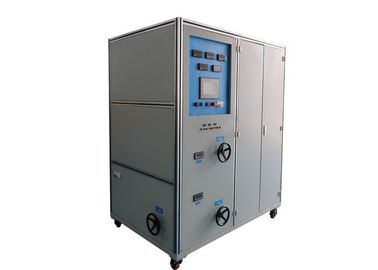

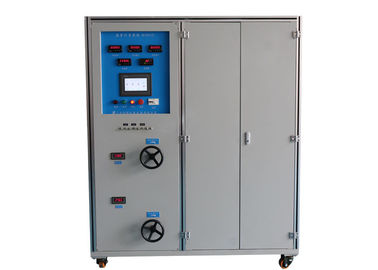

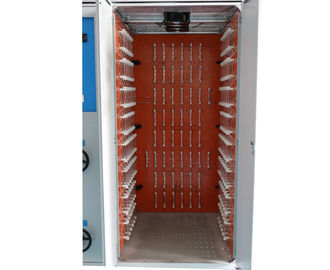

Picture for reference:



UL1054 30 Pieces 200W Halogen Filament Lamp Load Chamber For  Plug Socket Switch Over Load Tester 0
