Test Finger Probe
Created with Pixso.

50mm Diameter Test Finger Probe IEC61032 Fig.1, IEC60529 IP1 And IEC60065.

50mm Diameter Test Finger Probe IEC61032 Fig.1, IEC60529 IP1 And IEC60065.

Brand Name: HongCe
Model Number: HT-I01
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 30 set per month
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Product Name:
Test Probe A
Handle Length (nylon):
100
Color:
White
Lead Time:
Within Very Short Time
Standards:
IEC61032, IEC60529
Baffle Plate Diameter:
45mm
Oem:
Yes
Warranty:
1 Year
Packaging Details:
Aluminum box
Product Description

50mm Diameter Test Finger Probe IEC61032 fig.1, IEC60529 IP1 and IEC60065.



Test Finger Probe for Product Overview:

The HT-I01 Test Probe is a high-precision instrument meticulously engineered for diverse testing and inspection applications. Its superior  performance and exceptional reliability make it a preferred choice across numerous professional domains.



Standard:

IEC61032 fig.1, IEC60529 IP1 and IEC60065.



Main features of Test Finger Probe:

  • High - Precision Measurement:Equipped with high sensitivity and precise measurement capabilities, this test probe can accurately detect and feedback a wide range of physical parameters. Whether it's a minute change or a complex environmental condition, it consistently provides reliable data.
  • Sturdy and Durable:Constructed from high - quality materials, this probe boasts excellent durability and wear resistance. It is designed to withstand long - term use in harsh testing environments while maintaining stable performance.
  • Ergonomic Design:The handle is designed with ergonomics in mind, ensuring a comfortable grip and easy operation. The length and shape of the probe are carefully engineered for flexible use in various testing scenarios.
  • Wide Applicability:Suitable for a broad range of testing fields, including electronics, electrical, mechanical, and chemical applications, this probe meets the specific needs of different industries and provides robust support for testing tasks.
  • Easy Maintenance:With a simple structure, this probe is easy to clean and maintain. Routine maintenance is straightforward, effectively extending the probe's service life.
  • Customization Options:This test probe can be customized to meet specific requirements. When equipped with an Amphenol connector, it can be used for anti - electric shock tests. Alternatively, it can be configured for enclosure protection tests by utilizing the M6 threaded hole at the end of the handle (compatible with pull and push dynamometers).



Test sample:

Easily accessible enclosure live parts or mechanical parts pose significant risks. These components, when within easy reach, can expose operators to potential electrical shocks from live parts, or cause physical injuries such as cuts, bruises, or even more serious harm from moving mechanical parts. In industrial settings, it is crucial to ensure proper safeguarding mechanisms are in place to prevent accidental contact with such easily accessible enclosure live parts or mechanical parts. This may involve the use of protective covers, guards, or interlocks that restrict access unless the equipment is in a safe state, thereby enhancing overall safety in the workplace.





Application areas:

  • Electronic Product Testing

This is employed to assess the performance and quality of electronic products. It encompasses examining aspects like the connectivity of circuit boards and the parameters of electronic components, ensuring the reliability and functionality of the end - products.
  • Electrical Equipment Testing

During the installation, commissioning, and maintenance phases of electrical equipment, this type of testing measures electrical parameters and conducts troubleshooting. It is essential for guaranteeing the safe and efficient operation of electrical systems.
  • Mechanical Engineering Testing

Utilized for dimensional measurement and mechanical property testing of mechanical parts, this testing provides vital data support for mechanical design and manufacturing processes. It helps in optimizing the design and ensuring the durability and performance of mechanical components.
  • Chemical Experiment

In chemical experiments, it is used to detect physical parameter changes such as temperature, pressure, and concentration during chemical reactions. This data is crucial for understanding reaction mechanisms, optimizing reaction conditions, and ensuring the reproducibility of chemical processes.



Technical Parameters:

Model HT-I01
Name Test probe A
Rigid test ball diameter (metal) SФ50+0.05 0
Baffle diameter (nylon) Ф45±0.2
Baffle thickness 4
Handle diameter Ф10
Handle length (nylon) 100
Force ----

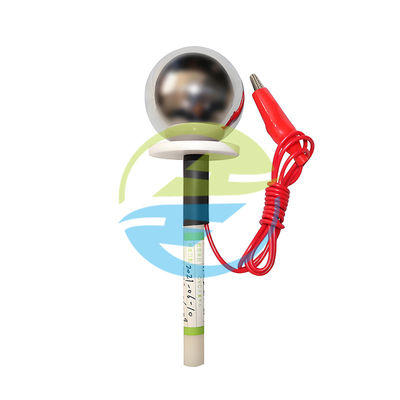

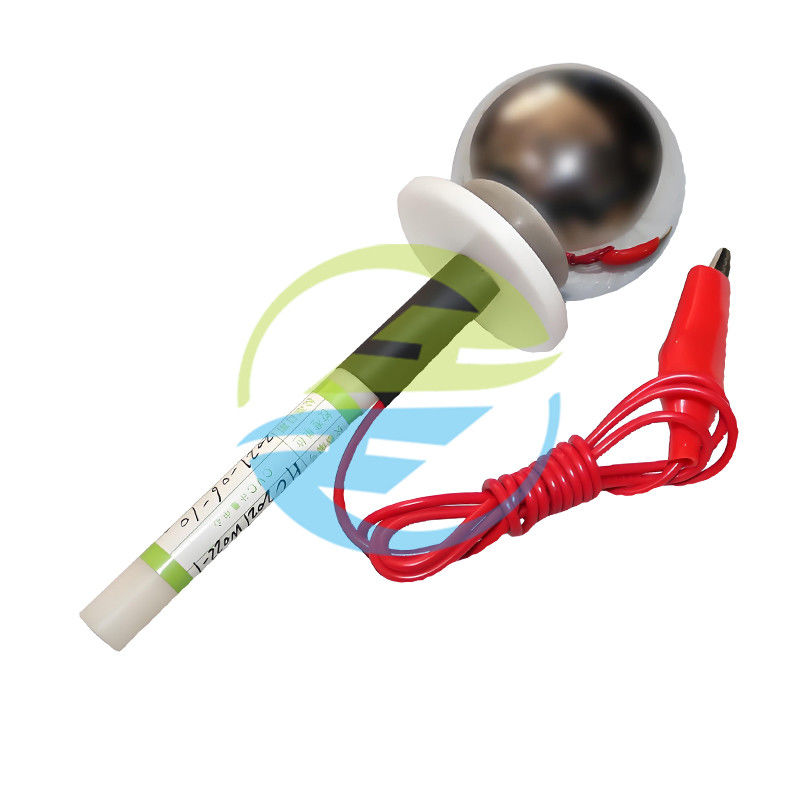

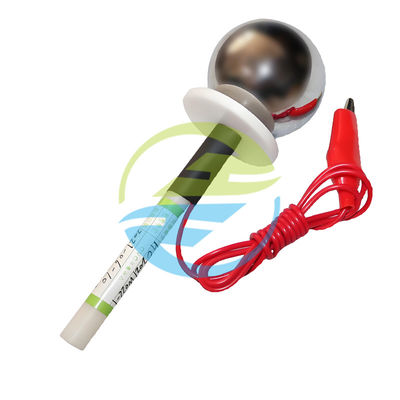

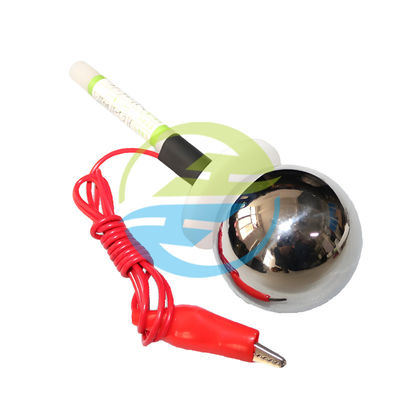

Product image of Test Finger Probe:



50mm Diameter Test Finger Probe IEC61032 Fig.1, IEC60529 IP1 And IEC60065. 0



50mm Diameter Test Finger Probe IEC61032 Fig.1, IEC60529 IP1 And IEC60065. 1



Frequently Asked Questions (FAQ)

  • Q1: What is the specific measurement range of the test probe HT - I01?

A: The HT - I01 test probe is primarily utilized for protection inspections. Its function is to determine whether the openings and other components of the equipment shell can safeguard against the back of the hand or other objects coming into contact with the internal hazardous parts, thereby preventing potential risks.

  • Q2: What is the operating temperature range of the test probe?

A: The typical operating temperature range is from 0℃ to 40℃. Within this temperature spectrum, the probe ensures normal operation and maintains its measurement accuracy.

  • Q3: What are the advantages or characteristics of the HT - I01 test probe compared to other similar products?

A: The HT - I01 test probe offers several notable advantages. It boasts higher accuracy, a more standardized design, and is crafted from more durable materials. For instance, it adheres to multiple international and national standards, including IEC61032 Figure 1 Test Tool A and GB/T16842 Test Tool A. This compliance ensures the authority and reliability of its test results, making it a preferred choice for accurate and dependable inspections.

  • Q4: Which standards and certifications does the test probe comply with?

A: The test probe typically complies with a series of authoritative standards, such as IEC61032 Figure 1 Test Tool A, GB/T16842 Test Tool A, GB4208IP1, IEC60529IP1, and IEC60065. These standards attest to its quality, safety, and performance, ensuring it meets the rigorous requirements of various industries.

  • Q5: Does your company offer after - sales service? What does the after - sales service entail?

A: Absolutely, we provide comprehensive after - sales service. This encompasses product warranty, maintenance, and technical support. Specifically, during the warranty period, if the probe experiences quality issues that are not a result of human - induced damage, our company will offer free repair or replacement services. Our dedicated technical support team is also available to address any inquiries or issues that customers may encounter, ensuring a seamless experience throughout the product's lifespan.
