Probe Anti-Electric Shock Experimental Device IEC Test Equipment IEC60990 High Precision Contact Current Tester

Brand Name:	HongCe
Model Number:	CT-4
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate(cost additional)

Product Name:

Touch Current Measuring Circuit

Warranty:

1 Year

Standard:

IEC60990

RS:

1500Ω

RB:

500Ω

CS:

0.22μF

R1:

10000Ω

C1:

0.022μF

Packaging Details:

Aluminum Box

Highlight:

High Precision Experimental Device

IEC Test Equipment Experimental Device

Anti-Electric Shock Experimental Device

Product Description

Probe Anti-Electric Shock Experimental Device IEC Test Equipment

IEC60990 High Precision Contact Current Tester

Product Introduction

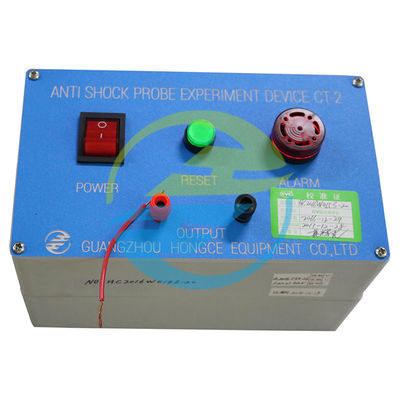

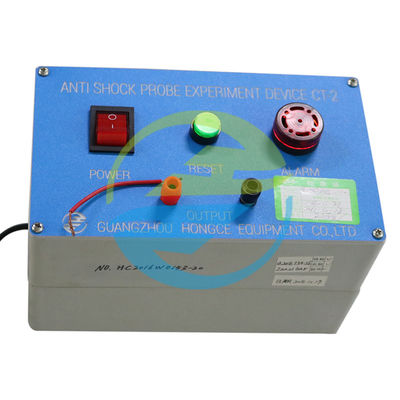

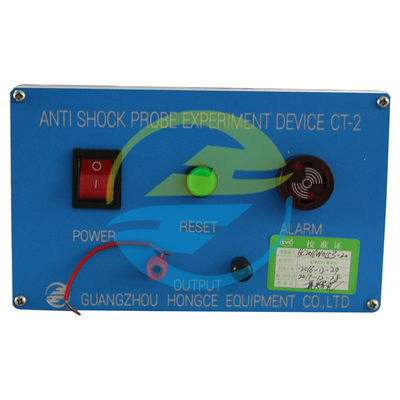

The CT-2 probe anti-electric shock test device is designed to ensure the safety of electrical equipment. This device strictly follows international standards and is a core tool for testing the anti-electric shock performance of electrical equipment. It is widely used in the research and development, production and quality inspection of various electrical products, providing users with reliable safety testing solutions to ensure that products comply with international safety regulations and effectively prevent electric shock risks.

Parameter Details:

Resistance RS: 1500Ω, crucial for current regulation and measurement precision within the network.
Resistance RB: 500Ω, playing a role in shaping the electrical characteristics and current pathways.
Capacitance CS: 0.22μF, influencing the network’s capacitive reactance and current behavior.
Resistance R1: 10000Ω, integral to voltage division and current control.
Capacitance C1: 0.022μF, impacting the network’s frequency response and filtering capabilities.

Product Features

Designed strictly in accordance with IEC60990 standards to ensure accurate test results and provide solid protection for product safety.
Humanized design allows even novices to quickly get started and improve detection efficiency.
Using high-quality components, it can maintain stable performance after long-term use and reduce maintenance costs.
It can detect a variety of electrical equipment to meet the needs of different users.

Product use:
The CT-2 probe anti-electric shock test device is mainly used to detect the contact current of electrical equipment, evaluate the anti-electric shock protection performance of the equipment under normal use and fault conditions, ensure that the equipment meets safety standards, and prevent users from electric shock accidents during use. It is widely used in product quality inspection and certification in home appliances, electronics, power and other industries.

Probe Anti-Electric Shock Experimental Device IEC Test Equipment IEC60990 High Precision Contact Current Tester 1

Summary

The IEC60990 Figure 4 Touch Current Measuring Network stands as a pivotal instrument in electrical testing. It meticulously adheres to relevant IEC standards, particularly in touch - current and protective - conductor - current measurement. Its design, equipped with an independent power switch for effortless operation, overcomes the power - supply shortcomings of earlier versions, enabling testing of high - power electrical products. Parameters RS, RB, CS, R1, and C1 are carefully set, each making a distinct contribution to regulating electrical properties such as current, voltage, and frequency response. For testing, combining an oscilloscope, a suitable voltage probe, and an adjustable power supply is essential. This equipment combination ensures comprehensive and accurate measurement capabilities across various testing scenarios.
