Standard Test Finger IEC61032 Fingertip Length 80mm Test Finger Probe

Name: Standard Test Finger IEC61032 Fingertip Length 80mm Test Finger Probe
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HT-I02
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HT-I02
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Color:

White

Material:

Plastic + Stainless Steel

Warranty:

1 Year

Application:

Electronic Safety Tester

Oem:

Yes

Standards:

IEC61032,IEC60335,UL1278

Baffle Plate Diameter:

75mm

Finger Length:

80mm

Packaging Details:

Aluminum box

Highlight:

Standard Test Finger Probe

IEC61032 Test Finger Probe

80mm Test Finger Probe

Product Description

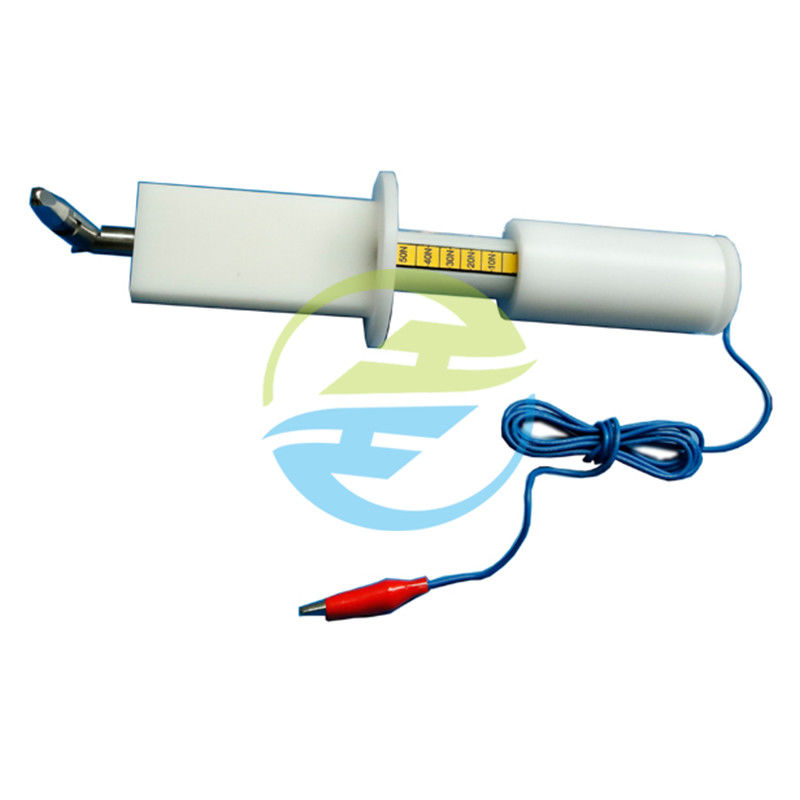

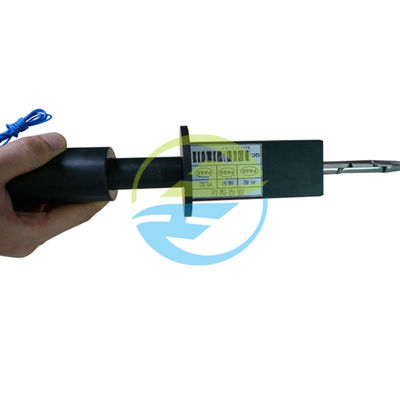

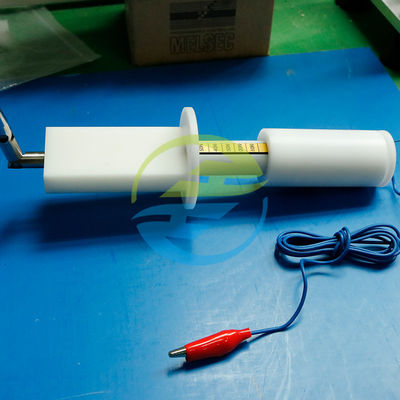

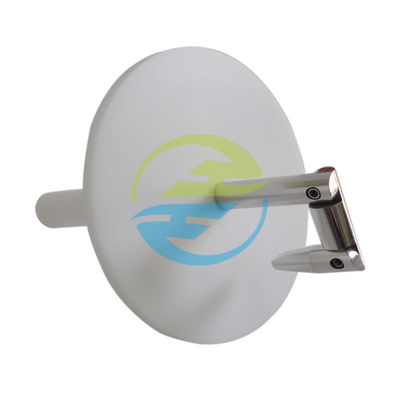

Standard Test Finger IEC61032 Fingertip Length 80mm Test Finger Probe

Product Introduction:

In the field of electronic product safety testing, an accurate and reliable tool is the key to ensuring product quality. The HT-I02 standard test finger is such a professional device designed for electronic product safety. It is built strictly according to international standards, with precise dimensions and excellent materials. Whether it is testing small household appliances or large industrial electronic equipment, it can provide reliable protection for product safety performance with its accurate detection, and is a powerful assistant for enterprises to control product safety.

Product Features:

Precise design and manufacturing: Designed and manufactured strictly in accordance with IEC61032-1 standards, each size parameter is precisely controlled, such as joint 1 is 30±0.2, joint 2 is 60±0.2, fingertip length is 80±0.2mm, etc., to ensure the accuracy and consistency of detection.
Made of plastic and stainless steel, it not only ensures the strength and durability of the structure, but also has good insulation performance, and can be used stably in a variety of detection environments.
Specially used to simulate human hands for safety testing of electronic products, it can effectively detect whether the product has accessible dangerous parts.
Simple and convenient operation, can quickly and accurately detect electronic products, and improve detection efficiency.

Product Application:

Electrical Appliance Manufacturing: Used to test the safety of household appliances like refrigerators, washing machines, and air conditioners.

Industrial Equipment Testing: Ensures the safety of industrial machinery and electrical control panels.

Quality Control and Inspection: A vital tool for quality control departments to verify product compliance.

Laboratory Testing: Widely employed in laboratories for electrical safety research and testing.

Parameters(mm):

Model	HT-I02
Name	Standard Test Finger
Joint 1	30±0.2
Joint 2	60±0.2
Finger length	80±0.2
Fingertip to baffle	180±0.2
Cylindrical	R2±0.05
Spherical	R4±0.05
Fingertip cutting bevel angle	37°
Fingertip taper	14°
Test finger diameter	Ф12
A-A Section diameter	Ф50
A-A Section width	20±0.2
Baffle diameter	Ф75±0.2
Baffle thickness	5±0.5
Force	----
Applied standard	IEC61032-1

Product specifications and details:

Standard Test Finger IEC61032 Fingertip Length 80mm Test Finger Probe 0

Standard Test Finger IEC61032 Fingertip Length 80mm Test Finger Probe 1

FAQ Insights

Function: Simulates human finger access to assess the accessibility of electrical enclosures and ensure product safety.

Durability: Made of high - quality materials for repeated use in tough testing environments.

Versatility: Suitable for a wide variety of electrical products.

Usability: Its ergonomic design makes it user - friendly.
