| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HDX1304 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 set per month |
| Power Supply: | AC230V 50Hz | Fixed Shaft Diameter: | Φ40±0.3mm |
|---|---|---|---|
| Test Rate: | Single Strokes 40±1 Times/minute | Test Stroke: | 0.1m Up-and-down Movement |
| Working Station: | 3 | Weight: | 500±5g*3 |
| Counter: | 0~999999 (can Be Preset) | Dimension: | 1200×400×1400mm |
| High Light: | 0.1m Electric Wire Abrasion Test Apparatus,Electric Wire Abrasion Test Apparatus |
||
Test stroke: 0.1m up-and-down movement Electric Wire Abrasion Test Apparatus For Cable Testing Equipment
Product Introduction with Cable Testing Equipment:
This apparatus conforms to IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 clause 3.3 and Figure 3 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.
It is used for checking the wear resistance test of the completed flexible cables.
Test Method with Cable Testing Equipment:
1. This test shall be made on three pairs of samples of flexible cable, each sample having a length of about 1m.

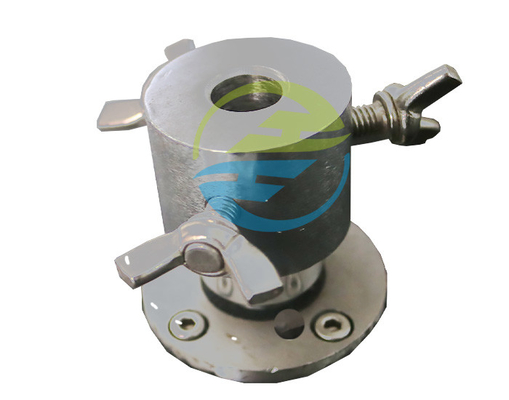

2. In each pair one sample shall be wound so as to give nearly two turns on a fixed reel having a diameter of 40mm at the bottom of the groove as shown in figure 3, the distance between the flanges of the reel being such that the turns are in close contact with each other. The sample shall then be fixed to prevent any movement relative to the reel.
3. The other sample shall be placed in the groove formed by the turns and a weight having a mass of 500g shall be attached to one end.
4. The other end shall be moved up and down over a distance of 0.1m, at a rate of about 40 single strokes per minute.
Product Parameters with Cable Testing Equipment:
| Power supply | AC230V 50Hz |
| Fixed shaft diameter | Φ40±0.3mm |
| Test rate | Single strokes 40±1 times/min |
| Test stroke | 0.1m up-and-down movement |
| Working station | 3 |
| Weight | 500±5g*3 |
| Counter | 0~999999 (can be preset) |
| Dimension | 1200×400×1400mm |

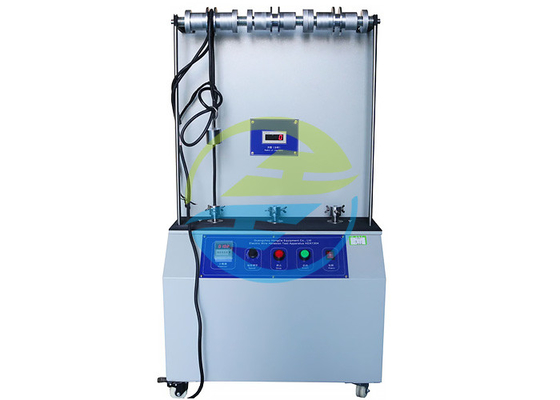

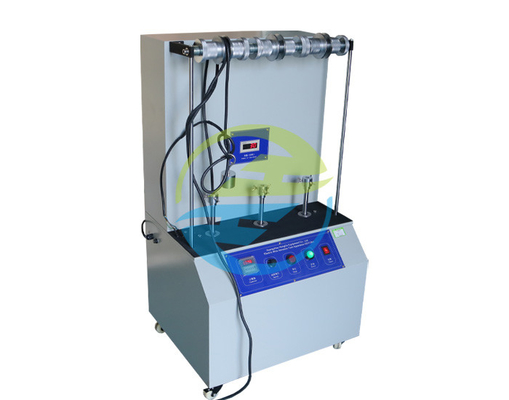

Product Image with Cable Testing Equipment:
