Single Strokes 40±1 Times/min Electric Wire Abrasion Test Apparatus For Cable Testing Equipment

Single Strokes 40±1 Times/Min Electric Wire Abrasion Test Apparatus For Cable Testing Equipment

Product Introduction with Cable Testing Equipment:

This apparatus conforms to IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 clause 3.3 and Figure 3 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

It is used for checking the wear resistance test of the completed flexible cables.

Test Method with Cable Testing Equipment:

1. This test shall be made on three pairs of samples of flexible cable, each sample having a length of about 1m.

2. In each pair one sample shall be wound so as to give nearly two turns on a fixed reel having a diameter of 40mm at the bottom of the groove as shown in figure 3, the distance between the flanges of the reel being such that the turns are in close contact with each other. The sample shall then be fixed to prevent any movement relative to the reel.

3. The other sample shall be placed in the groove formed by the turns and a weight having a mass of 500g shall be attached to one end.

4. The other end shall be moved up and down over a distance of 0.1m, at a rate of about 40 single strokes per minute.

Product Parameters with Cable Testing Equipment:

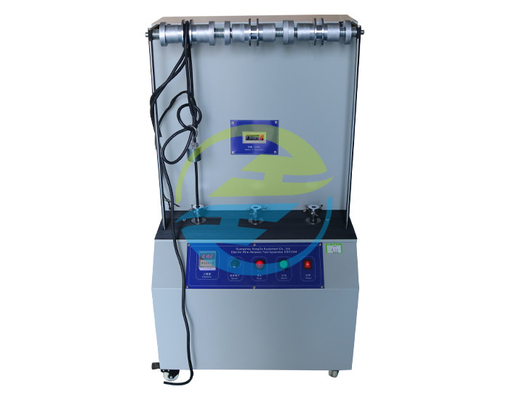

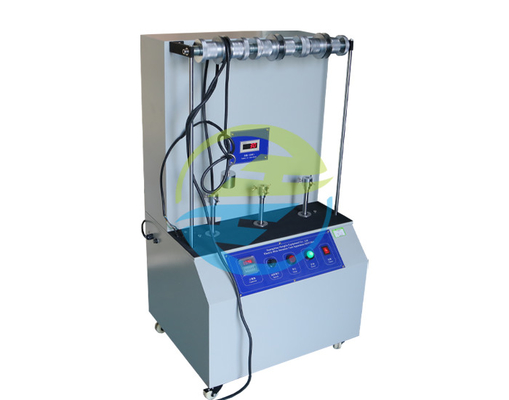

Product Image with Cable Testing Equipment:

Our advantage service:

We possess a professional R&D and design team that leverages their proficient skills and innovative thinking to provide customers with uniquely crafted product solutions. If you have any novel ideas or unique needs for a product, please feel free to share them with us, and we will carefully craft a one-of-a-kind product design based on your creativity and expectations, meeting all your aspirations.

Technical support:

All our workers are experienced and skilled.

After sale service:

Our professional working team and outstanding sales team are committed to providing our clients with products worldwide and guaranteeing fast and efficient after-sales services to meet various needs.

About Us:

Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
