PLC Control Househole Appliance Supply Cord Flexing Test Apparatus For Cable Testing Equipment

PLC Control Househole Appliance Supply Cord Flexing Test Apparatus For Cable Testing Equipment

Brand Name: HongCe
Model Number: HJ0608A
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10 set per month
Detail Information
Place of Origin:
China
Certification:
Calibration certificate(cost additional)
Flexing Angle:
Left 0-360°; Right 0-360°. Can Be Preset
Flexing Speed:
Flexing Speed 0~60 Rpm, Can Be Preset
Test Times:
0~999999 Times, Can Be Preset And Displayed
Power:
230V 50Hz
Control:
PLC Programmable Control
PLC Programmable Control:
Servo Motor
Operation:
Touch Screen Intelligent Operation
Configuration:
0~4KW Transformer, Test Current Display
Bearing:
Max. 10kg
Load Weights:
5N*1,10N*1
Packaging Details:
Plywood
Highlight:

PLC control Househole Appliance Supply Cord

,

4KW Cord Flexing Test Apparatus

Product Description

PLC Control Househole Appliance Supply Cord Flexing Test Apparatus For Cable Testing Equipment



Product Introduction with Cable Testing Equipment:

The Household Appliance Supply Cord Flexing Test Apparatus is special designed and manufactured according to IEC60335-1, GB4706-1, IEC60335-2-14, GB4706-30 clause 23.3 and 25.14 and etc., it is used to check the power cord flexing (bending) resistance performance of the small household appliances (such as Coffee pot / electric iron) and lamps, also applicable for power cord flexing endurance tester of plugs and sockets.This device can meet the test requirements of most of small household electrical appliances, the applicable range is widely.



Product Parameters with Cable Testing Equipment:

Flexing angle Left 0-360°; right 0-360°. Can be preset
Flexing speed Flexing speed 0~60 rpm, can be preset
Test times 0~999999 times, can be preset and displayed
Power 230V 50Hz
Control PLC programmable control
Drive Servo motor
Operation Touch screen intelligent operation
Configuration 0~4KW transformer, test current display
Bearing Max. 10kg
Load weights 5N*1,10N*1

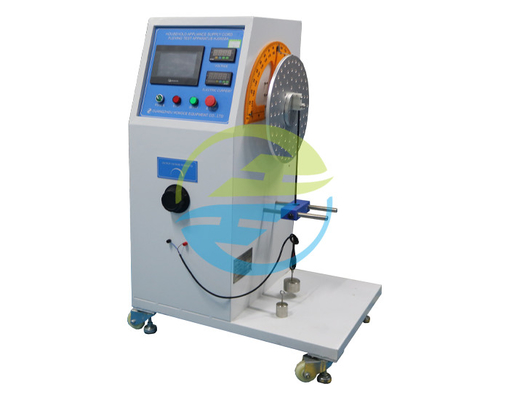

Product Image with Cable Testing Equipment:

PLC Control Househole Appliance Supply Cord Flexing Test Apparatus For Cable Testing Equipment 0

PLC Control Househole Appliance Supply Cord Flexing Test Apparatus For Cable Testing Equipment 1PLC Control Househole Appliance Supply Cord Flexing Test Apparatus For Cable Testing Equipment 2
