Place of Origin: | China |
Brand Name: | HongCe |
Certification: | Calibration certificate(cost additional) |
Model Number: | HC9930 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plywood |
Delivery Time: | 20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 30 set per month |
Material: | Stainless Steel Plate | Thickness: | 2 Mm |
---|---|---|---|
Standard: | IEC60884-1 | ||
Highlight: | 2mm Gauge Test Finger Probe,HC9930 Test Finger Probe,Cover Plates Test Finger Probe |

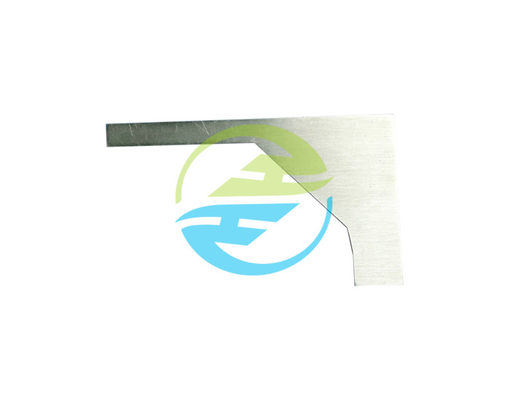

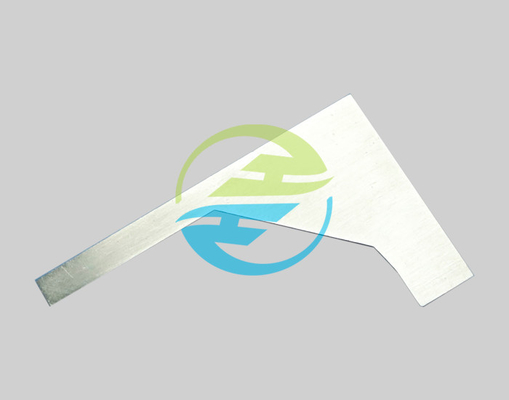

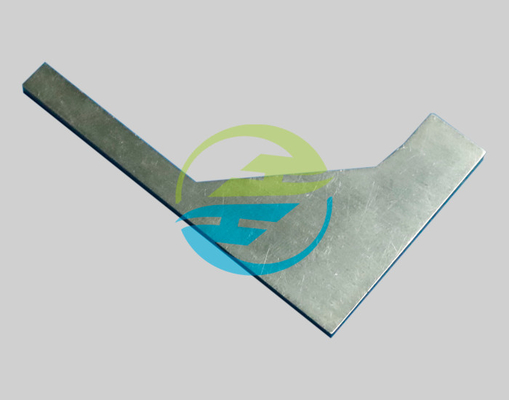

Thickness 2 mm Gauge for Cover or Cover Plates HC9930 Plug Socket Tester
Standard with Test Finger Probe:
IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements clause 24.17 and 24.18, figure 32.
Application with IEC Test Equipment:
It is used to check the contour line of the cover or the cover plate. It has become an indispensable and important equipment in household appliances manufacturer, quality inspection departments and R & D institution detected safety performance of household electrical products.
Test sample with Test Finger Probe:
Parameters with Test Finger Probe:
Material |
Stainless steel plate |
Thickness |
2 mm |
Operation Steps with Test Finger Probe:
Please refer to IEC60884-1, the gauge shown in figure 32 is pushed toward each side of each cover or cover-plate which is fixed without screws on a mounting or supporting surface, as shown in figure 33. The face B resting on the mounting / supporting surface, with the face A perpendicular to it, the gauge is applied at right angles to each side under test.
The distances between face C of the gauge and the outline of the side under test, measured parallel to face B, shall not decrease (with the exception of grooves, holes, reverse tapers or the like, placed at a distance less than 7 mm from a plane including face B and complying with the test of 24.18) when measurements are repeated, starting from point X in the direction of the arrow Y (see figure 34).
Our advantage service:
We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About Us:
Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
