| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | CNAS |
| Model Number: | FCF-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 15 sets per month |
| Load Current: | 0~50A | Load Voltage: | Maximum 12V |
|---|---|---|---|
| Test Speed: | 0-0.4m/s Adjustable | Testing Distance: | 1000±20㎜ |
| High Light: | material testing equipment,electric wire tester |
||
IEC60245-2 Figure 1 Mechanical Strength Testing Equipment For Flexible Cables
Product information:
This cable tester is designed and manufactured in accordance with the standard requirement of IEC60245.2 clause 22.7. It is used for checking mechanical strength of completed flexible cables.
This cable tester consists of a carrier C (see IEC60245-2 Figure 1),a driving system for the carrier and four pulleys for each sample of cable to be tested. The carrier C supports two pulleys A and B, which are of the same diameter. The two fixed pulleys, at either end of the apparatus, may be of a different diameter from pulleys A and B, but all four pulleys shall be so arranged that the sample is horizontal between them. The carrier makes cycles (forward and backward movements) over a distance of 1 m at an approximately constant speed of 0,33m/s between each reversal of the direction of movement.
Technical parameters:
|
Load Current (Built-in load) |
0~50A, adjustable |
|
Load Voltage (Built-in load) |
Maximum 12V |
|
Test Speed |
0-0.4m/s adjustable, frequency control |
|
Weights Mass |
Tow set of 0.5-14Kg combination weights |
|
Testing Distance |
1000±20㎜ |
|
Pulleys Diameter |
60mm,80mm,120mm,160mm,200mm, 250mm, 300mm, 380mm |
|
Groove R |
1.5mm, 5mm, 6.5mm, 9mm, 12.5mm, 12.5mm, 13.5mm, 16mm |
|
Applicable Wire Diameter |
2~26 mm |
|
Conforming To |
IEC60245-2 clause 22.7 Figure 1 |
Horizontal Position Schematic Diagram

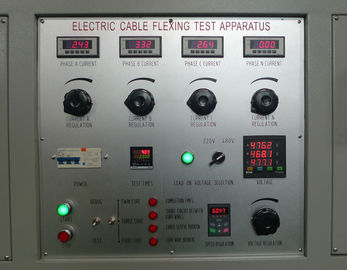

Current
Pulleys
Weights
This test equipment can test cable which has large core, the coss-sectional area range is 2~26 mm.
HongCe can customize all kinds of test equipment to meet your specific requirements, you are welcome to email or calll to us!
