IEC60335-2-24 Clause 21.102 Test Finger Probe 75mm±5mm Spheroid Probe Test

Name: IEC60335-2-24 Clause 21.102 Test Finger Probe 75mm±5mm Spheroid Probe Test
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HT-I25
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HT-I25
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Product Name:

75mm±5mm Spheroid

Model:

HT-I25

Application:

Test Finger Probe

Warranty:

1 Year

Oem:

Yes

Standards:

IEC60335

Packaging Details:

Aluminum Box

Highlight:

IEC60335-2-24 Test Finger Probe

Spheroid Test Finger Probe

Product Description

IEC60335-2-24 Clause 21.102 Test Finger Probe 75mm±5mm Spheroid Probe Test

Standard of Test Finger Probe:

IEC60335-2-24 This test probe conforms to IEC60335-2-24 Clause 21.102. It is used for protection test on the lamps of household appliances.

Test method of Test Finger Probe:

Using a sphere probe whose diameter is 75±0.5㎜ to touch the lamp which is equipped with a lampshade with inconspicuous force. The sphere probe should not be able to touch the lamp.

Parameters of Test Finger Probe:

Parameters /Model	HT-I25
Sphere Probe Diameter	75mm±0.5㎜
Sphere Probe Material	Rigid steel
Handle Diameter	50mm
Handle Length	100mm
Handle Material	Nylon

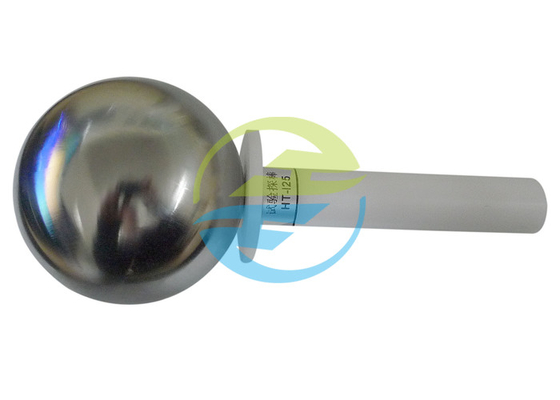

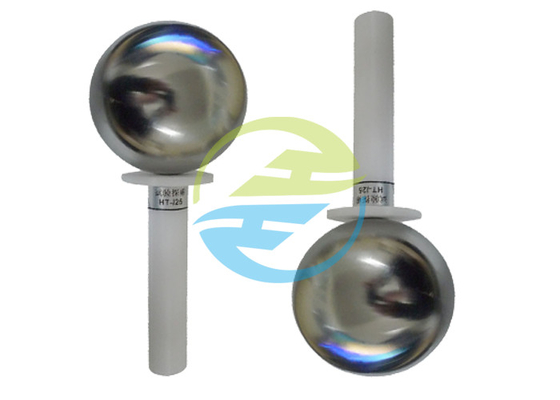

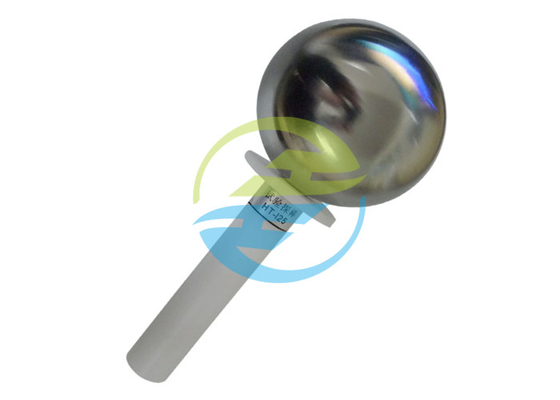

Picture for reference:

IEC60335-2-24 Clause 21.102 Test Finger Probe 75mm±5mm Spheroid Probe Test 0
