| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HT-I23 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 3 Days |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/ month |
| Name: | Test Probe | Model: | HT-I23 |
|---|---|---|---|
| Standards: | IEC60065, IEC62151, UL6500 | Warranty: | 1 Year |
| Lead Time: | Within Very Short Time | Probe Length: | 80mm |
| Baffle Plate Diameter: | 50mm | Material: | Nylon Handle + Stainless Steel Probe |
| High Light: | Figure 2C Test Finger Probe,IEC60950 Test Finger Probe,80mm Test Finger Probe |
||

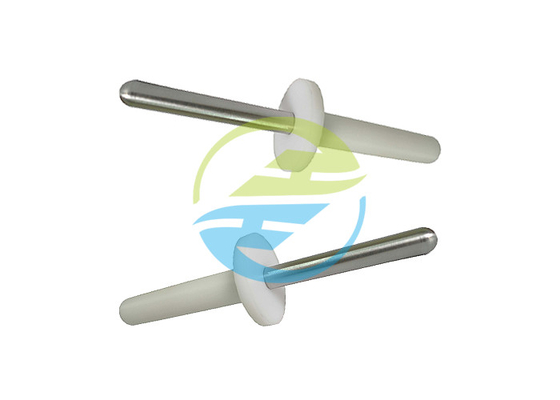

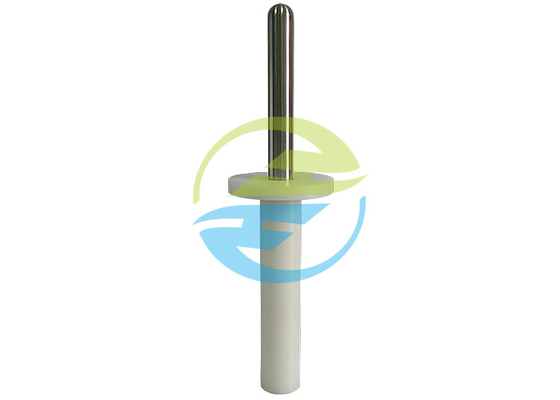

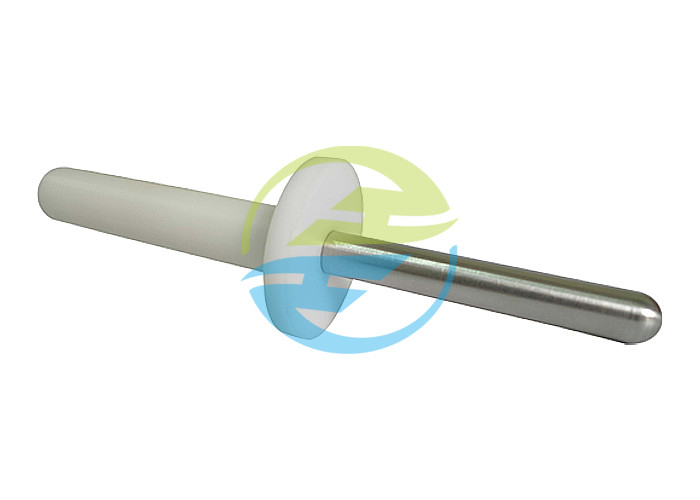

IEC60950 Figure 3 Test Finger Probe Telecom Test Probe End radius with R6
Product presentation of Test Finger Probe:
The Telecom Test Probe is a precision tool designed for electronic testing and measurement applications. With its robust and durable construction, the probe is suitable for use in a wide range of environments and conditions, providing accurate and reliable measurement results.
Operating Procedures of Test Finger Probe:
Take IEC 60950 clause 2.1.1.1 as an example:
This test probe is applied to openings, without appreciable force, in every possible position, except that floor-standing equipment having a mass exceeding 40 kg is not tilted.
Application of Test Finger Probe:
It is used for the bare parts of TNV circuits of information technology equipment to see whether they have sufficient protection.
Test sample of Test Finger Probe:Information technology equipment.
Feature of Test Finger Probe:Nylon handle + stainless steel probe.
Parameters:
| Model | HT-I23 |
| Probe length | 80 |
| End radius | R6 |
| Probe diameter | Φ12 |
| Baffle diameter of the handle | 50 |
