| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HT-I09 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Aluminum box |
| Delivery Time: | 5 days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
| Product Name: | Test Pin | Warranty: | 1 Year |
|---|---|---|---|
| Standards: | IEC61032,IEC60065 And Etc. | Material: | Nylon And Stainless Steel |
| Handle Length: | 20 | Metal Pin Length: | 15 (0, -0.1) |
| Baffle Diameter: | Ф25±0.2 | Baffle Thickness: | 4 |
| Highlight: | IEC60065 Test Pin,15mm Length Test Pin |
||
IEC60065 Test Pin For Information Technology Equipment Pin Length 15mm Handle Length 20mm
IEC60065 clause 9.1.1
For CLASS II constructions, the test probe 13 of IEC 61032 shall not touch HAZARDOUS LIVE parts when applied with a force of 3 N ± 0,3 N in every possible position.
The test probe is not applied to socket-outlets, connectors providing MAINS power, fuse holders and the like.
The above requirements to determine whether a HAZARDOUS LIVE part is ACCESSIBLE apply only to HAZARDOUS LIVE voltages not exceeding 1 000 V a.c. or 1 500 V d.c. For higher voltages, there shall be a CLEARANCE between the part at HAZARDOUS LIVE voltage and the test finger or the test pin as specified in 1 3.1 .1 for BASIC INSULATION (see figure 3).
Standard:
Conforms to IEC 60065 clause 9.1.1.2, IEC61032 figure 9 Test probe13, IEC60950-1 figure 2B, IEC60335. Test Finger Probe
Application:
This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment.
Test sample:
Easily accessible enclosure live parts or mechanical parts. Test Finger Probe
Feature:
It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Parameters:
| Model/ Parameter | HT-I09 |
| Item Name | Short test pin probe |
| Metal pin tip diameter | Ф3 (0, -0.05) |
| Metal pin tail diameter | Ф4 (0, -0.05) |
| Metal pin length | 15 (0, -0.1) |
| Baffle diameter | Ф25±0.2 Test Finger Probe |
| Baffle thickness | 4 |
| Handle diameter | Ф10 |
| Handle length | 20 |

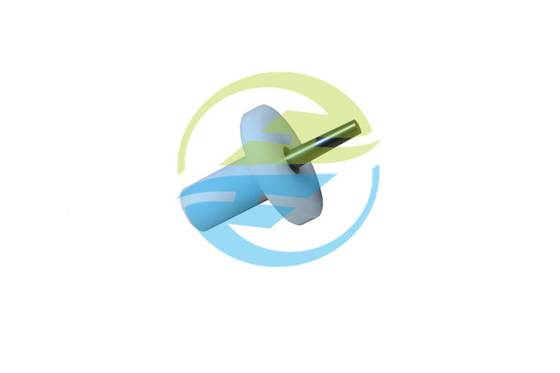

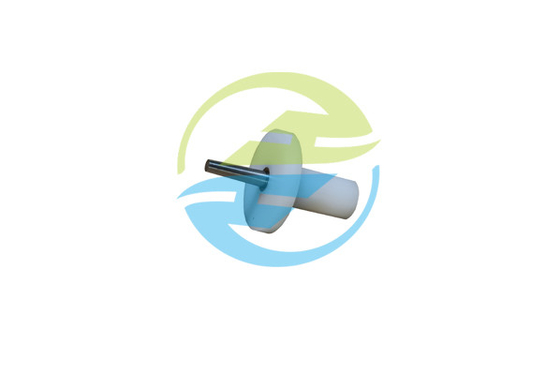

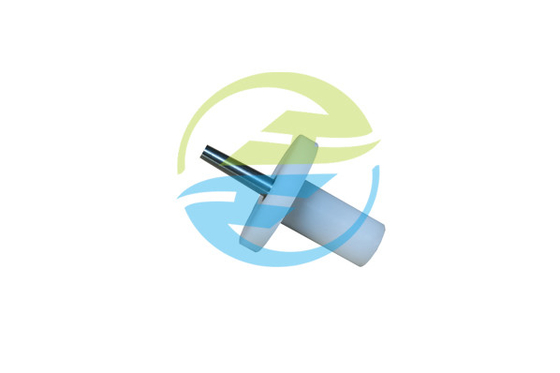

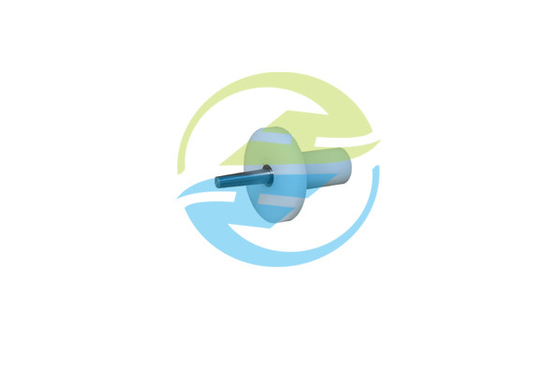

Picture for reference:
