0-30° Stability Tester Inclined Plane Test Device With Imported Janpan Angle Gauge

Brand Name:	HongCe
Model Number:	IPD
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

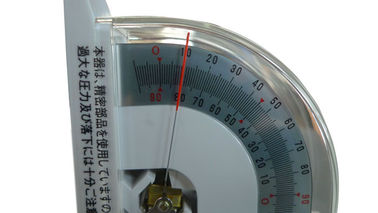

Angle Gauge:

Imported From Janpan

Material:

Steel

Standard:

IEC60335-1 Clause 20.1

Packaging Details:

Plywood

Highlight:

portable appliance testing equipment

portable appliance tester

Product Description

0～30° Stability Tester Inclined Plane Test Device With Imported Janpan Angle Gauge

Product information:

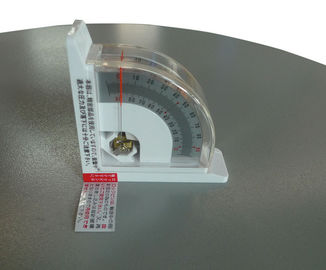

This inclined plane tester is designed and manufactured in accordance with the IEC60335-1 clause 20.1.It is used to test the stability of an apparatus that requires a surface in order to work. The device consists of a surface and an angle adjusting device, with angles 0～30° adjustable.

The appliance is placed in any normal position of use on a plane inclined at an angle of 10° to the horizontal, the supply cord resting on the inclined plane in the most unfavourable position. However, if part of an appliance comes into contact with the horizontal supporting surface when the appliance is tilted through an angle of 10°, the appliance is placed on a horizontal support and tilted in the most unfavourable direction through an angle of 10°.

Appliances provided with doors are tested with the doors open or closed. Appliances intended to be filled with liquid by the user in normal use are tested empty or filled with the most unfavourable quantity of water up to the capacity indicated in the instructions.

Technical parameters:

Model	Plane diameter	Plane material	Angle range	Bearing capacity	Rotating mode	Rotating speed
IPD-1	600mm	High quality coating steel plate	0-30°	50kg	By manual/ power-driven	-/1r/min
IPD-2	800mm	High quality coating steel plate	0-30°	80kg	By manual/ power-driven	-/1r/min
IPD-3	1000mm	High quality coating steel plate	0-30°	120kg	By manual/ power-driven	-/1r/min
IPD-4	800*800mm	Anti-skid board	0-15°	80kg	By manual	-

0-30° Stability Tester Inclined Plane Test Device With Imported Janpan Angle Gauge 0
