20N Heat Resistance Verification Compression Test Apparatus IEC60884-1 Figure 38

Brand Name:	HongCe
Model Number:	RH-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Material:

Stainless Steel

Force:

20N

Test Temperature:

(80±2) °C

Standard:

IEC60884-1 Figure 38

Packaging Details:

Plywood

Highlight:

material test machine

compression test equipment

Product Description

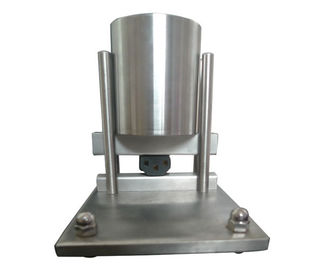

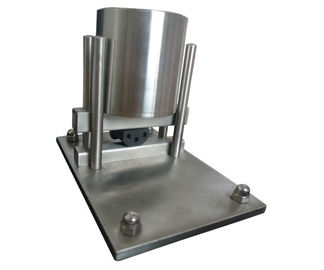

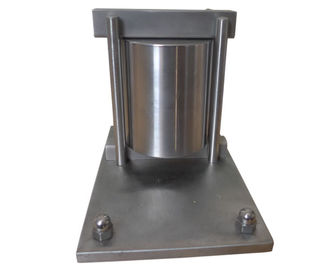

20N Heat Resistance Verification Compression Test Apparatus IEC60884-1 Figure 38

Product details:

This apparatus confirms to the standard requirement of IEC60884-1 figure 38. It is used to test the pressure-resistant properties of the electrical accessories and mounting box under the circumstance of being heated. This testing equipment should be put into use with the heating box.

Technical parameters:

Standard	IEC60884-1 figure 38
Cylindrical face dimention	Radius 25 mm, width 15 mm, length 50mm
Force	20N
Test temperature	(80±2) °C
Material	Stainless steel

This device comprises two steel jaws, having a cylindrical face of 25 mm radius, a width of 15 mm and a length of 50 mm. The length of 50 mm can be increased, depending on the size of the accessory to be tested. The corners are rounded with a radius of 2.5 mm. The specimen is clamped between the jaws in such a way that these press against it in the area where it is gripped in normal use, the centre line of the jaws coinciding as nearly as possible with the centre of this area. The force applied through the jaws is 20 N. The test occurs in a heating cabinet at a temperature of (80±2) °C.

20N Heat Resistance Verification Compression Test Apparatus IEC60884-1 Figure 38 0
