IEC60335 PLC Automatic Washing Machine Door Performance Tester

Brand Name:	HongCe
Model Number:	MDE-4
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability:	10 Pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Standard:

IEC60335-1, IEC60335-2-7

Control Mode:

Advanced PLC Control

Display Mode:

7-inch Color Touch Screen

Frame Structure:

High-grade Aluminum

Packaging Details:

Plywood

Highlight:

IEC 60335 Door Performance Tester

PLC Washing Machine Door Performance Tester

Product Description

IEC60335 PLC Automatic Washing Machine Door Performance Tester

Production introduction:

The washing manchine door opening endurance test device conforms to IEC60335-1, IEC60335-2-7 standard clause 18.101and clause 22.104, meet the household electric washing machine safety requirements, it is used for washing machine door opening and closing durability test.

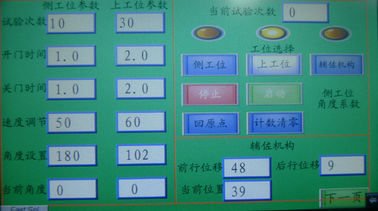

It adopts to the most advanced PLC plus stepper motor control, with 100% stainless steel

manipulators and vacuum chuck; and it has standard TFT true color LCD touch screen, can be

preset test angle and speed, so realistically simulate a washing machine door opened and closed

manually, achieve intelligent control.

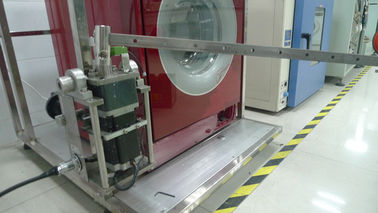

The test equipment consists of an electrical control cabinet, a sample holder and two mounted

robotic composition (stepper motor driver). The rack is made of high-grade aluminum extrusions,

manipulator are mounted on the rack beams and pillars, can meet the

left door and the door of the washing machine test on different sizes, it is versatility.

Main technical parameters:

1. Work power: AC 220V 50HZ or AC 110V, 60Hz

2. Control mode: PLC

3. Display mode:7-inch touch screen

4. Frame structure material: High-grade aluminum

5. Manipulator: One size manipulator and one upper manipulator,

you can replace the vacuum chuck and the gripper device

6. Assistance device: 0-50mm stroke adjustable

7. Chassis adjustment device: Adjust the sample to be level or tilt

8. Test times: 0-999999 adjustable, automatically shutdown when it reaches the preset number

9. Opening / closing time: 0-9999S adjustable

10. Opening / closing rate: adjustable

11. Opening angel: Side manipulator 0-180°adjustable; upper manipulator -30-90°

12. Work station: Single(left door openning or upper door openning )

13. Rack Size: 800*1000*1200mm

14. Sample door detection: Sample Open 50mm outage detection

15. Standard: IEC60335-1, IEC60335-2-7
