Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment IEC60335-1:25.15

Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment IEC60335-1:25.15

  • Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment  IEC60335-1:25.15
  • Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment  IEC60335-1:25.15
  • Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment  IEC60335-1:25.15
  • Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment  IEC60335-1:25.15
  • Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment  IEC60335-1:25.15
Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment  IEC60335-1:25.15
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: third party calibration certificate(cost additional)
Model Number: PST-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 20 days
Payment Terms: T/T, L/C, D/A, Western Union, MoneyGram, D/P
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Standard: IEC60335-1:25.15 Torque Time: 0.01S~99 Hours 99 Mins
Tension Times: 0~9999 Tension Frequency: 1 Times/s
Highlight:

power cable tester

,

electric wire tester

Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment





Product information:

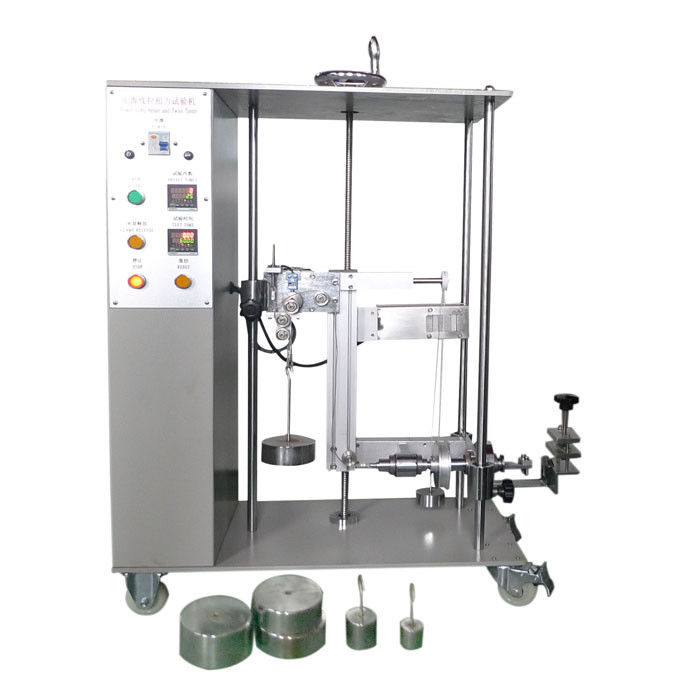

The power cord tension & torque test appliance is designed and manufactured accordingto IEC60335-1:25.15.



The test equipment is mainly applied for testing the power cord tension and torque at the terminal two trials of the appliances which are with a power cord, and intended flexible cord permanently connected to the fixed wiring and other household electrical appliances, medical equipment, checking whether the clamping device is secure.



Main technical parameters:



Power Supply AC220V, 50HZ or 110V, 60Hz
Pull weight 20N*2,30N*2( the pulling force of 30N,60N,80N,100N can be achieved)
Torque weight 5N*1, 12.5N*1, 17.5N*1 (0.1Nm,0.25Nm,0.35Nm)
Tension times 0~9999(selectable),25 times is by default
Tension frequency 1 times/s
Torque time 0.01S~99 hours 99 mins





Reference  – Pull force and torque:



Mass of appliance (kg)

Pull force  (N)

Torque  (Nm)

≤1

30

0.1

> 1 and ≤4

60

0.25

> 4

100

0.35



Test Principles:



Electric appliances is provided with a supply cord, and electric appliances is intended to be permanently connected to fixed wiring by a flexible cord, there shall have a cord anchorage. The cord anchorage shall relieve conductors from strain, including twisting, at the terminals and protect the insulation of the conductors from abrasion.



A mark is made on the cord while it is subjected to the pull force shown in follow table, at a distance of approximately 20 mm from the cord anchorage or other suitable point.



The cord is then pulled, without jerking, for 1 s in the most unfavourable direction with the force specified. The test is carried out 25 times.



The cord, unless on an automatic cord reel, is then subjected to a torque that is applied as close as possible to the appliance. The torque is specified in following table and is applied for 1 min.



During the tests, the cord shall not be damaged and shall show no appreciable strain at the terminals. The pull force is reapplied and the cord shall not be longitudinally displaced by more than 2 mm.



Metallic Power Cord Tension Torque Tester Electrical Cable Pull Twist Testing Equipment  IEC60335-1:25.15 0

HongTong has  a strong ability in R&D and manufacturing, also we can offer best solutions and customized products to meet your needs.
