| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | calibration certificate (cost additional) |
| Model Number: | HT-I32 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 3 Days |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/ month |
| Name: | Surface Temperature Probe | Warranty: | 1 Year |
|---|---|---|---|
| Standard: | IEC60335-2-11, IEC60335-2-6 | Polycarbonate Tube: | Inside Diameter:Φ3 |
| Measuring Surface: | Φ5*0.5mm | Force: | 4±1 N |
| Thermocouple: | Φ0.3K Type | Test Sample: | Cooking Ranges And Ovens |
| High Light: | IEC60335-2-6 Test Finger Probe,Diameter 0.3K Test Finger Probe |
||

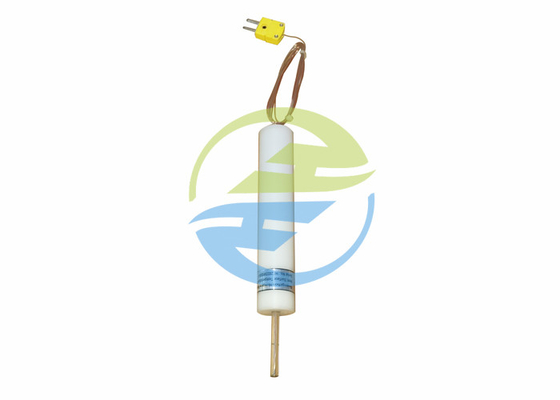

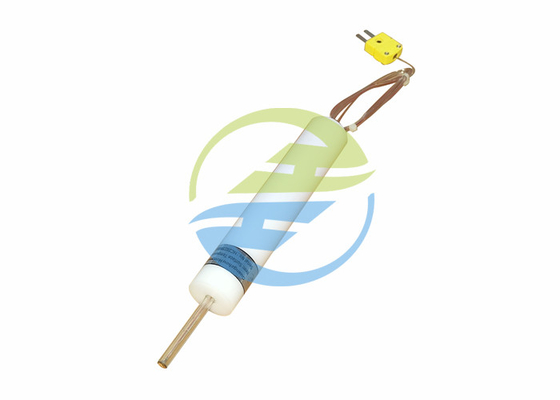

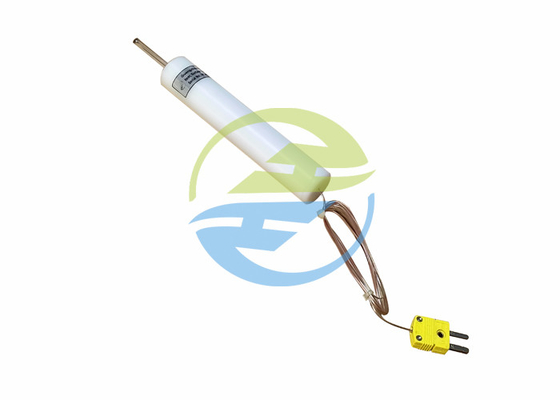

IEC60335-2-6 Test Finger Probe Surface Temperature Probe, Thermocouple Diameter 0.3K type
Standard of Test Finger Probe:IEC60335-2-11 figure 101 and IEC60335-2-6-2002 figure 104.
Application of Test Finger Probe:It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of drum-type dryer, upright electric cooker, cooking bench and oven.
Test sample of Test Finger Probe:Drum-type dryer, upright electric cooker, cooking bench and oven.
Feature of Test Finger Probe:Hand held exterior temperature measurement.
Parameters of Test Finger Probe:
| Model | HT-I32 |
| Measuring surface | Φ5*0.5mm Tinned copper disc |
| Polycarbonate tube | Inside diameter:Φ3; outside diameter:Φ5 |
| Thermocouple | Φ0.3K type |
| Handle arrangement permitting a contact force | 4±1 N |
