| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | TUV、ITS、CSA、BV、SGS 、CNAS(cost additional) |
| Model Number: | YLH-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 20 days |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 15 set per month |
| Tank Volume: | 4000cm3 | Maximum Working Pressure: | 4MP/C㎡ |
|---|---|---|---|
| Heater Power: | 2.4KW | Temperature Self-control Range: | Room Temperature 0-200℃ |
| High Light: | material testing equipment,electric wire tester |
||

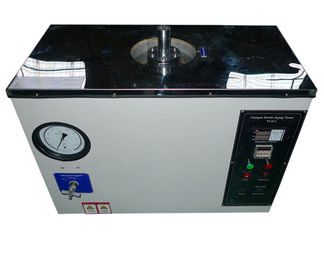

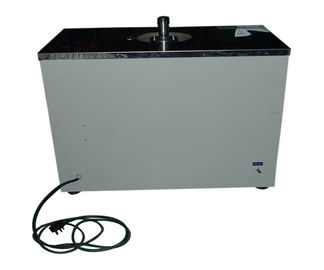

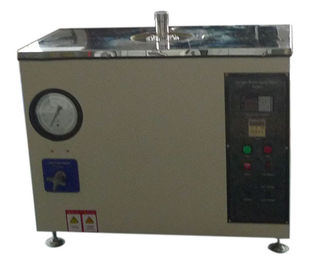

IEC60811-1-2 Cable Rubber Insulation Materials 4000cm3 Air Bomb Oxygen Aging Tester
Product information:
The oxygen bomb (air bombs) aging tester is designed and manufactured according to
IEC60811-1-2,IEC60335-1,IEC60335-2-17 and IEC60245-2 etc.
It is suitable for the aging test in the oxygen and compressed air to the wire and cable, rubber (plastic, leather)
insulation and sheathing, as well as other polymer materials under the action of a predetermined pressure
and temperature.
The instrument is with high accuracy temperature control, the operation is easy, and the appearance is attractive.
Structural Description:
The test device is composed of stainless steel tank container, electrical control cabinet .
The tank consists of outside enclosure, insulation layer, heater, temperature aluminum cover,
stainless steel pressure tank, the sample tray, automatic overpressure protection devices and
other components.
The electrical control cabinet mainly consists of outside cabinet, power distribution box and gas
distribution chassis.
Technical parameters:
|
Parameters Name |
Parameter Data |
Parameters Name |
Parameter Data |
|
Power |
220V(AC) |
Tank volume |
4000cm3 |
|
Maximum Working Pressure |
4MP/C㎡ |
Heater power |
2.4KW |
|
Security Burst Pressure |
2.7－3.3MP/C㎡ |
Temperature Deviation |
±1℃ |
|
Temperature self-control range |
Room temperature 0-200℃ |
Temperature control |
Digital display automatic control |
|
Dimensions |
820×420×670mm |
Tank materials |
Stainless steel |
