| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third Party Calibration(cost additional) |
| Model Number: | KP-5/6/10 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10 set/month |
| Standard: | IEC 60335-2-15 | Workstation: | 3/6/10 , Can Be Customized |
|---|---|---|---|
| Power Supply: | 220V, 50Hz Or 110V, 60Hz | Control: | PLC |
| High Light: | portable appliance testing equipment,portable appliance tester |
||

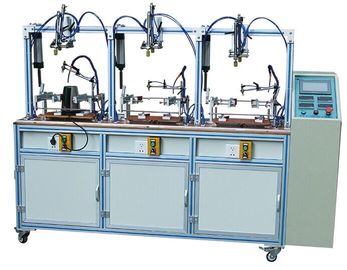

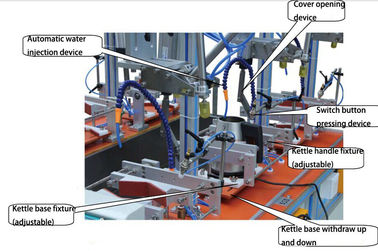

Conventional Cordless Kettle Boil Pour Dry Heating Withdraw Fully Functions Tester
Product information:
The electric water kettle tester is suitable for comprehensive lifespan testing of various types of
conventional cordless electrothermal kettle , complete simulation of artificial water boiling mode.
It is designed and manufactured according to IEC 60335-2-15 clause 19.101, 19.102, 22.106 and etc.
The whole without staff care, failure alarm.
Each station configured independently, without mutual interference. Very low fault rate.
Technical parameters:
Power supply:220V, 50Hz or 110V, 60Hz
Test samples: Conventional cordless electrothermal kettle , can be customized for special test samples
Application: comprehensive lifespan test for various types of conventional cordless electrothermal kettle

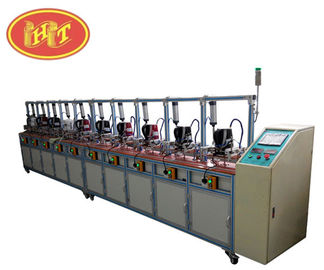

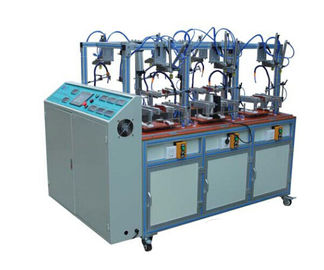

Work station:3 workstations, 6 workstations (single/double row), 10 workstations(single/double row), can be customized
Display mode: Touch screen
Control mode: PLC
Test mode:
1) Dry heating mode (self cooling)
2) Dry heating mode (water cooling)
3) Withdraw mode (without current)
4) Withdraw mode (with current)
5)Water boiling mode
Main control parameters:
| Water pouring time | 1~9999(s) adjustable | kettle back to origin time | 1~9999(s) adjustable |
| Water injection time | 1~9999(s) adjustable | cooling time | 1~9999(s) adjustable |
| Withdraw conduction time | 1~9999(s) adjustable | withdraw break off time | 1~9999(s) adjustable |
| Rest set | 1~9999(times) adjustable | rest time | 1~9999(s) adjustable |
| Test times | 1~9999(times) adjustable | actual counting times | 1~9999(s) adjustable |
