Test Finger Probe
Created with Pixso.

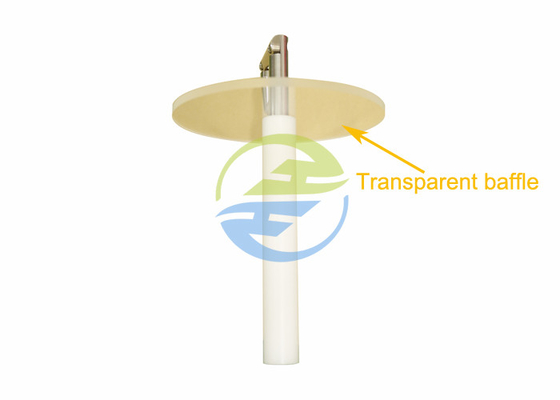

IEC60335-2-14 Test finger Probe With Diameter 125mm Circular Stop Face Probe Length 100mm

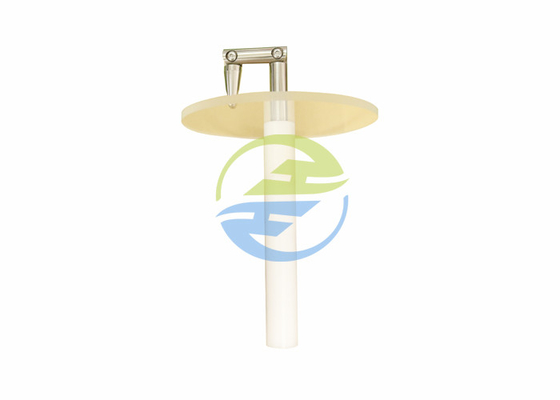

IEC60335-2-14 Test finger Probe With Diameter 125mm Circular Stop Face Probe Length 100mm

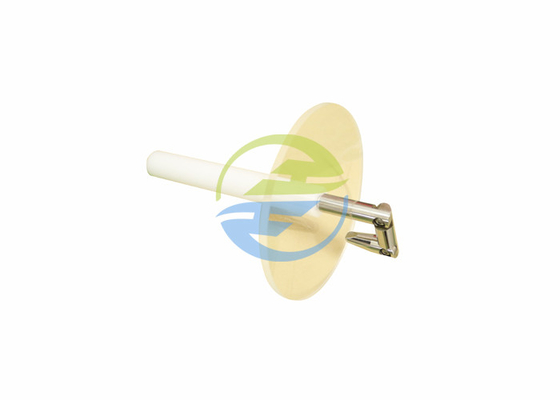

IEC60335-2-14 Test finger Probe With Diameter 125mm Circular Stop Face Probe Length 100mm

Brand Name: HongCe
Model Number: HT-I02B
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 30 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration certificate(cost additional)
Name:
Large Baffle Test Finger
Warranty:
1 Year
Application:
Vertify Mechanical Hazards
Standards:
IEC61032,IEC60335-2-14
Baffle Diameter:
125mm
Fingertip To Baffle:
100mm
Color:
White
Test Sample:
Blenders
Packaging Details:
Aluminum box
Highlight:

IEC 60335-2-14 Test Finger Probe

,

125mm Diameter Test Finger Probe

Product Description

IEC60335-2-14 Test Probe With Diameter 125mm Circular Stop Face, Probe Length 100mm



Standard of Test Finger Probe: IEC61032 figure 2 test probe B, IEC60335-2-14 clause 20.2.

Application of Test Finger Probe: This probe is intended to verify the stability and mechanical hazards of blenders.

Test sample of Test Finger Probe: Blenders.

Feature of Test Finger Probe: A test probe similar to that of test probe B of IEC 61032 but having a circular stop face with a diameter of 125 mm instead of the non-circular face, the distance between the tip of the test finger and the stop face being 100 mm.



Parameters(mm) of Test Finger Probe:

Model HT-I02B
Name Large Baffle Test Finger
Joint 1 30±0.2
Joint 2 60±0.2
Fingertip to baffle 100±0.2
Cylindrical R2±0.05
Spherical R4±0.05
Fingertip cutting bevel angle 37o 0 -10′
Fingertip taper 14 o 0 -10′
Test finger diameter Ф12 0 -0.05
Baffle diameter Ф125±0.2
Applied standard IEC60335-2-14




Picture for reference:

IEC60335-2-14 Test finger Probe With Diameter 125mm Circular Stop Face Probe Length 100mm 0

Our Services



1. owe more than 10 years experience in safety test equipment fiel,

2. Short lead time: 5days.

3. Factory price.



6. 50% deposit for producing,50% balance to be paid before shipment.

7. EXW, FOB, CIF C&F, FCA, DDU, and etc.
