| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HJ0608B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set per month |
| Power Supply: | AC220V 50Hz | Control Method: | Plc Touch Screen |
|---|---|---|---|
| Station: | 3 Station, Synchronize Working | Load: | 5N,10N |
| Bending Speed: | 0-60 Times / Min, Preset | Bending Angle: | 0-360°，plc Touch Screen, Preset |
| Warranty: | 1 Year | Product Name: | Home Appliance Supply Cord Flexing Test Apparatus |
| High Light: | Home Appliance Cord Flexing Test Apparatus,IEC60335-1 Cord Flexing Test Apparatus,3 Stations Cord Flexing Test Apparatus |
||

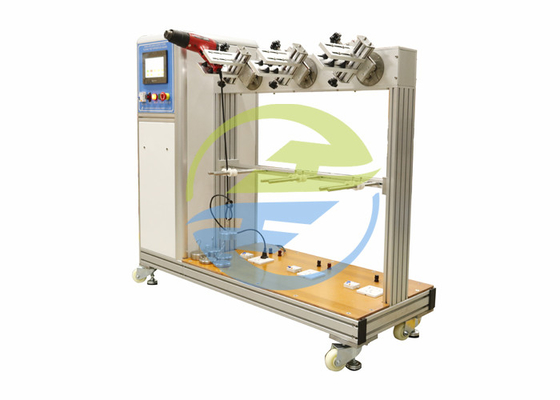

IEC60335-1 Home Appliance Supply Cord Flexing Test Apparatus 3 Stations Synchronize Working
standard description :
Appliances provided with a supply cord and that are moved while in operation shall be constructed so that the supply cord is adequately protected against excessive flexing where it enters the appliance. Electrical Appliance Tester
This requirement does not apply to appliances with automatic cord reels that comply with the requirement and test of 22.1 6.
Compliance is checked by the following test that is carried out on an apparatus having an oscillating member as shown in Figure 8.
The part of the appliance that includes the inlet opening is fixed to the oscillating member so that, when the supply cord is at the middle of its travel, the axis of the cord where it enters the cord guard or inlet is vertical and passes through the axis of oscillation. The major axis of the
section of flat cords shall be parallel to the axis of oscillation. Electrical Appliance Tester
The cord is loaded so that the force applied is:
– 10 N, for cords having a nominal cross-sectional area exceeding 0,75 mm 2 ;
– 5 N, for other cords.
Standard: Clause 23.3 and 25.14 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements, IEC60335-2-14 and etc. Electrical Appliance Tester
Application: It is used to check that the supply cord of the small household appliances (such as Coffee pot / electric iron) and lamps is adequately protected against excessive flexing where it enters the appliance.
Test sample: Small household appliances, such as coffee pot, electric iron, toaster, luminaires and etc.
Feature: The test stations, test angles, load voltage can be customized. The test cycles, speed, voltage and etc. can be preset.
Parameters:
| Parameters / Model | HJ0608B |
| Input Power | AC220V 50HZ |
| Control Method | PLC control, touch screen operation |
| Station | 3 (can upgrade to 6 stations),synchronous |
| Drive Mode | Electrical |
| Flexing Angle | 0-360°, preset on the touch screen |
| Flexing Speed | 0-60cycles/min, can be preset |
| Test Cycles | 0-999999, can be preset |
| Loading Weight | 5N,10N |
| Loading Voltage | - |
| Sample judgment | Judge the conduction by current |
