1M General Conductor Electric Resistance Fixture Device GB5023.2

1M General Conductor Electric Resistance Fixture Device GB5023.2

  • 1M General Conductor Electric Resistance Fixture Device GB5023.2
  • 1M General Conductor Electric Resistance Fixture Device GB5023.2
  • 1M General Conductor Electric Resistance Fixture Device GB5023.2
  • 1M General Conductor Electric Resistance Fixture Device GB5023.2
1M General Conductor Electric Resistance Fixture Device GB5023.2
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: CRF-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Standard: GB5023.2-97 Test Length: 1 M
Voltage Fixture Opening Distance: 42.5mm Test Sample Diameter: > Φ26
Highlight:

material testing equipment

,

electric wire tester

General Conductor Electric Resistance Fixture

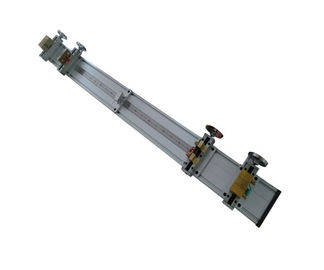

This general conductor electric resistance fixture complies with GB5023.2-97 national standard requirements, supporting the use of the electric bridge.

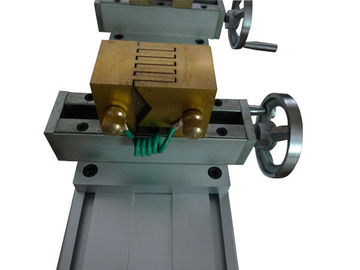

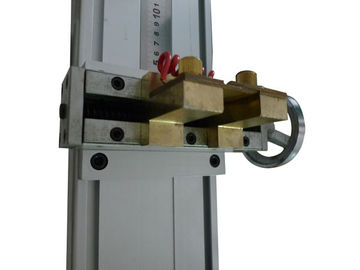

Fixture current end shape is a right angle shape of the jaws of death, making current end well contact with the specimen, and the uniform distribution of the current in measured cores, reducing contact resistance measurements. Suitable for circular, fan-shaped copper and aluminum wire and enameled wire.



Test length: 1M, with voltage measurement end and current input

Jig size: Jig in contact with the sample length is 50mm

Voltage fixture opening distance: 42.5mm

Current fixture opening distance: 13.8mm, can measure the sample which diameter is less than Φ26



Test length 1M
Jig size Jig in contact with the sample length is 50mm

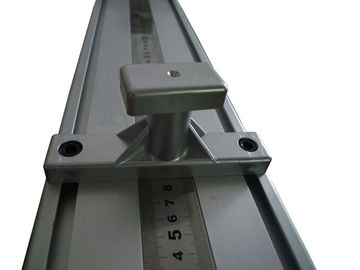

Voltage fixture opening distance 42.5mm
Current fixture opening distance 13.8mm
Test sample diameter > Φ26
