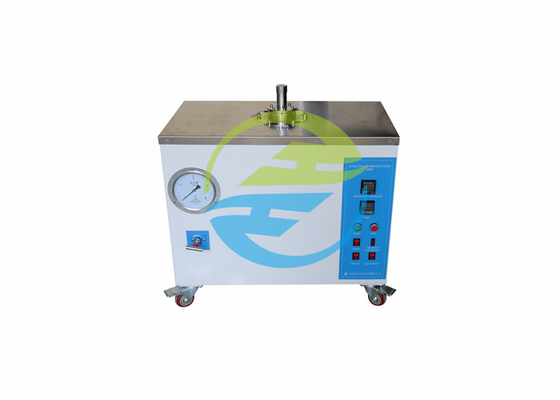

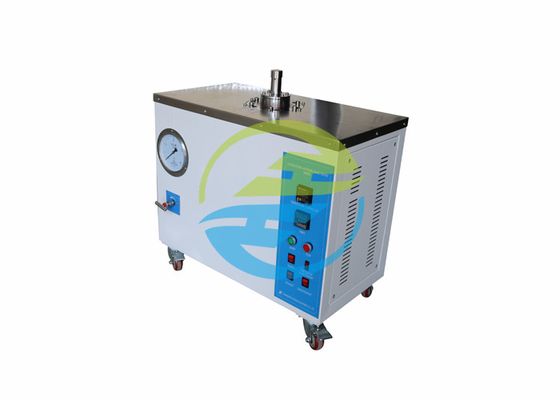

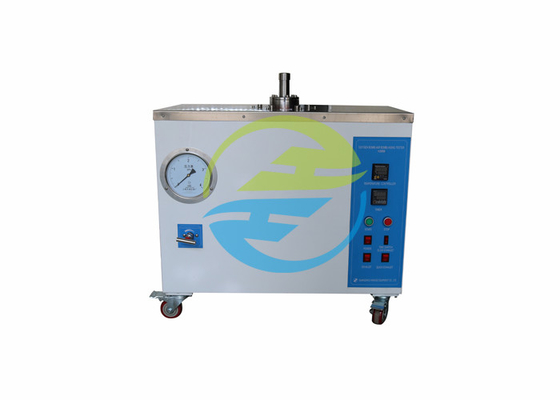

IEC60335-1 Cable Testing Equipment Oxygen Bomb Air Bomb Aging Tester 2.7 - 3.3MP

IEC60335-1 Cable Testing Equipment Oxygen Bomb Air Bomb Aging Tester 2.7 - 3.3MP

IEC60335-1 Cable Testing Equipment Oxygen Bomb Air Bomb Aging Tester 2.7 - 3.3MP
IEC60335-1 Cable Testing Equipment Oxygen Bomb Air Bomb Aging Tester 2.7 - 3.3MP
IEC60335-1 Cable Testing Equipment Oxygen Bomb Air Bomb Aging Tester 2.7 - 3.3MP
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HJ0606
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 40 days
Payment Terms: T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Name: Oxygen Bomb (Air Bomb) Aging Tester Standard: IEC60811, IEC60335
Warranty: 1 Year Maximum Operating Pressure: 4MP
Temperature Alarm: 0~200℃ Adjustable Temperature Deviation: ±0.5℃
Secure Burst Pressure: 2.7~3.3MP Input Power: 230V/50HZ
High Light:

IEC60335-1 Cable Testing Equipment

,

Oxygen Bomb Cable Testing Equipment

,

Air Bomb Aging Tester

IEC60335 / 4000cm³ Cable Testing Equipment Oxygen Bomb - Air Bomb Aging Tester​



Test conditions



1. The materials which have different substantially compositions should not be tested simultaneously.

2. The sample should not contact the tank wall, and the samples should not contact each other.

3. The sample volume should be less than 1/10 of the tank’s effective volume.                    Cable Testing Equipment

4. Oxygen should be no less than 97% purity industrial oxygen, air should be no oil, non-moist (The air compressor is supplied by the user).



Standard: IEC60335-2-6 clause 22, IEC60335-2-9 clause 22,Clause 22.32 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements, IEC 60811-1-1 sub clause 9.1 and IEC 60811-1-2 sub clause 8.3 and etc.

Application: It is used to process the aging test for the electric wire, the insulation layer and sheath of the rubber( plastic,artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.

Test sample: Wires, cables, rubber (plastic, leather) insulation layer and sheath, as well as other polymer materials.           Cable Testing Equipment

Feature: The device adopts inside and outside dual-chamber structure, the samples are suspended in an oxygen tube, filling with oxygen purity ≥ 97%, make the pressure up to 2.1 ± 0.07 MPa and maintain the temperature at 70 ° ± 1 ° C, then process aging test for 96 hours in this state.                                                   Cable Testing Equipment



Parameters:

Input Power 230V/50HZ
Maximum Operating Pressure 4MP
Secure Burst Pressure 2.7~3.3MP
Temperature-controlled range indoor temperature~200℃
Outer Chamber Dimensions 820mm×420mm×670mm
Inside Chamber Dimensions Diameter 123×Height 337mm
Inside Chamber Volume 4000cm³
Heating Power 2.5KW
Temperature Alarm 0~200℃ Adjustable
Temperature deviation ±0.5℃
Temperature Control Intelligent control
Temperature Display Thermometer display
Material Inside chamber is made of stainless steel and outer chamber is made of electrostatic spraying steel plate



IEC60335-1 Cable Testing Equipment Oxygen Bomb Air Bomb Aging Tester 2.7 - 3.3MP 0
