IEC 60227-2 Cable Testing Equipment Bending Test Apparatus For Tinsel Cord 0-1A Output Current

IEC 60227-2 Cable Testing Equipment Bending Test Apparatus For Tinsel Cord 0-1A Output Current

IEC 60227-2 Cable Testing Equipment Bending Test Apparatus For Tinsel Cord 0-1A Output Current
IEC 60227-2 Cable Testing Equipment Bending Test Apparatus For Tinsel Cord 0-1A Output Current
IEC 60227-2 Cable Testing Equipment Bending Test Apparatus For Tinsel Cord 0-1A Output Current
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HDX1316
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Name: Bending Test Apparatus Standard: IEC60227-1, IEC60227-2 And Etc.
Work Station: 1 Output Current: 0-1A
Output Voltage: 12V Test Sample: Flexible Cables
Usage: Mechanical Strength Testing Warranty: 1 Year
High Light:

IEC 60227-2 Cable Testing Equipment

,

1A Cable Testing Equipment

,

Cable Bending Test Apparatus

IEC 60227-1 Cable Testing Equipment Bending Test Apparatus With 60 Per Minute Flexing Rate



IEC60227-1 clause 5.6.3.2 Bending test for tinsel cord:
See 3.2 of IEC 60227-2.
During the test with 60 000 bending cycles, i.e. 120 000 single strokes, interruption of the current shall not occur.                Cable Testing Equipment
After the test, the sample shall withstand the voltage test carried out in accordance with 2.2 of IEC 60227-2, the voltage, however, being 1 500 V and applied only between the conductors connected together and the water.



Introduction:



The cord bending tester is designed and manufactured according to IEC 60227-1 clause 5.6.3.2, IEC 60227-2 clause 3.2. It is used to checking the power cord flexing(bending) resistance performance. Test object of rated voltages up to and including 450/750V polyvinyl chloride insulated cables.                          Cable Testing Equipment

The test device is easy to operate, can preset the number of test times (up to 999999 times), the test speed and test angle can be adjusted, load current 0-1A stepless adjustable, and with the current conduction detection function. Tester will stop automatically when preset test times completed or detected conduction interrupt, record the tested times and alarm with sound. The equipment is manufactured according to the standard and the sample fixture matches the multiple samples. The utility model has the advantages of beautiful appearance, strong function and high reliability, and is an indispensable equipment for cable manufacturers and laboratory testing.              Cable Testing Equipment



Technical Parameters:



Item Name Parameters
Input Power 230V, 50Hz
Work station 1 station
Flexing angle Each side 45°, 60°, 90°, has a dial for corresponding reference. Default 90°.
Flexing speed rate 10~60times per min, manual adjust
Test times 0~999999 times, can be preset and displayed
Load weights 5N*1
Output voltage 12V           Cable Testing Equipment
Output current 0-1A
Specimen fixture Specific fixtures
Conduction detection The test device is equipped with power supply terminals for the test samples, and it has a conduction detection function, if there is no current go through the test sample, the indicator light turns on, alarm occurs and the test stops, records the real-time test times



Picture for reference:

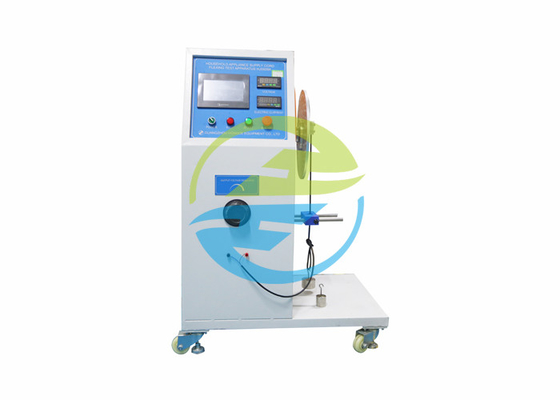

IEC 60227-2 Cable Testing Equipment Bending Test Apparatus For Tinsel Cord 0-1A Output Current 0

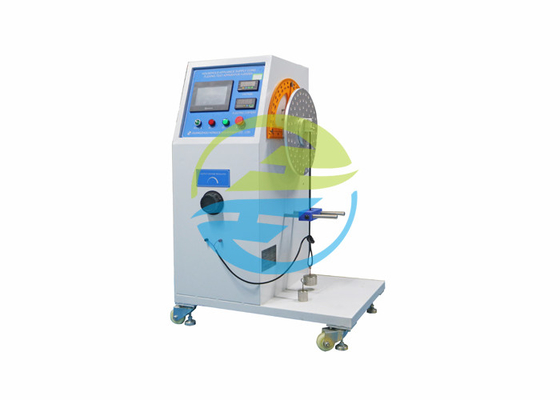

IEC 60227-2 Cable Testing Equipment Bending Test Apparatus For Tinsel Cord 0-1A Output Current 1
