| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HDX1315 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set per month |
| Standard: | IEC 60227-2 Clause 3.3 | Drop Height: | 0.5m |
|---|---|---|---|
| Drop Mode: | Electromagnetic Release | Snatch Weight: | 0.5kg |
| Output Current: | 0-1A | Output Voltage: | 12V |
| Working Station: | 1 | Test Times: | 0-999999 |
| High Light: | Clause 3.3 Cable Testing Equipment,IEC 60227-2 Cable Testing Equipment,0.5m Drop Height Cable Testing Equipment |
||
IEC 60227-2 Clause 3.3 Cable Testing Equipment Snatch Tester With A 0.5kg Weight
IEC60227-2 clause 3.3 Snatch test
The requirements are given in 5.6.3.3 of IEC 60227-1.
A sample of cord of appropriate length shall be attached by one end to a rigid support and a weight having a mass of 0,5 kg shall be secured to the sample 0,5 m below the point of attachment. A current of about 0,1 A shall be passed through the conductors. The weight shall be raised to the point of attachment and then dropped, five times. Cable Testing Equipment
Introduction:
The cord snatch tester is designed and manufactured according to IEC 60227-1 clause 5.6.3.3, IEC 60227-2 clause 3.3. It is used to testing the damage degree of flexible cord when applying a certain gravity pull. Test object of rated voltages up to and including 450/750V polyvinyl chloride insulated cables. Cable Testing Equipment
The test device is easy to operate, can preset the number of test times (up to 999999 times), the test speed can be adjusted, load current 0-1A stepless adjustable, and with the current conduction detection function. Tester will stop automatically when preset test times completed or detected conduction interrupt, record the tested times and alarm with sound. The equipment is manufactured according to the standard and the sample fixture matches the multiple samples. The utility model has the advantages of beautiful appearance, strong function and high reliability, and is an indispensable equipment for cable manufacturers and laboratory testing. Cable Testing Equipment
Technical Parameters:
| Item Name | Parameters |
| Input Power | 230V, 50Hz |
| Work station | 1 station |
| Drop height | 0.5m |
| Drop mode | Electromagnetic release, free fall |
| Electromagnetic chuck lift speed | Adjustable |
| Test times | 0-999999, preset Cable Testing Equipment |
| Snatch weight | 5N*1 |
| Conduction detection | The test device is equipped with power supply terminals for the test samples, and it has a conduction detection function, if there is no current go through the test sample, the indicator light turns on, alarm occurs and the test stops, records the real-time test times |
| Output voltage | 12V |
| Output current |
0-1A Cable Testing Equipment
|

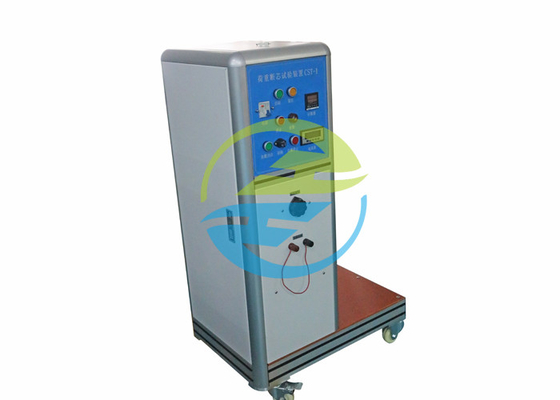

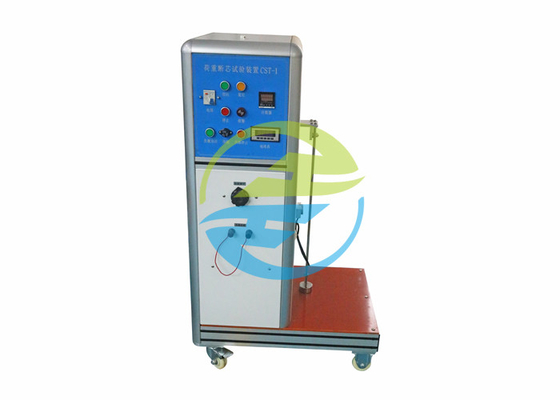

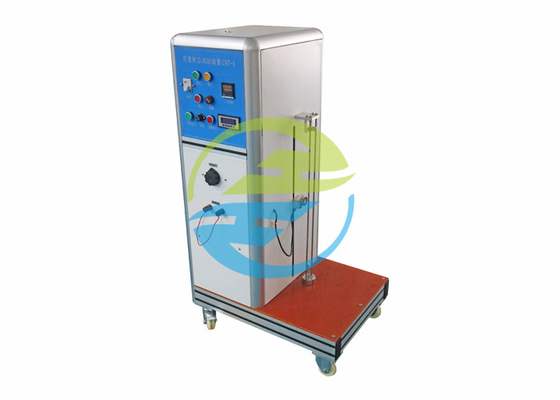

Picture for reference:
