Place of Origin: | China |
Brand Name: | HongCe |
Certification: | TUV、ITS、CSA、BV、SGS 、CNAS(cost additional) |
Model Number: | LTI-1 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiatable |
Packaging Details: | Plywood |
Delivery Time: | 25 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 15 set per month |
Material: | Stainless Steel | Standard: | IEC60884 Figure 27 And Figure 42 |
---|---|---|---|
The Height Of Falling: | 10~250mm Is Adjustable | ||
High Light: | electric socket tester,electrical plug tester |

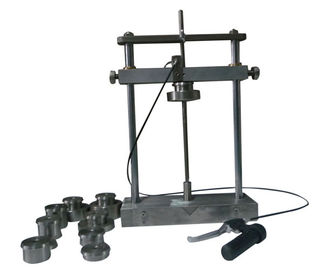

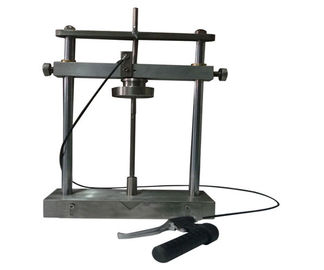

Low Temperature Tensile Strength Testing Machine Impact Test Device
Product information:

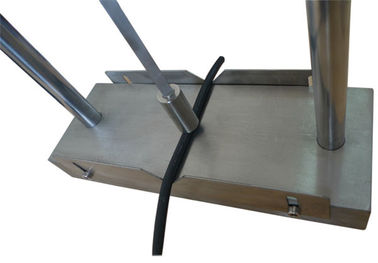

The HT Apparatus for impact test at low temperature confirms to the standard of IEC60884 figure 27 and figure 42. The first one is fit for impact test of wire while the latter one is applied for the impact test of plug, socket, switch, wire and electrical conduit.
Technical parameters:
This device is used with the cryostat. It should be put in the sponge-rubber pad of 40mm-thickness.
The height of falling: 10~250mm is adjustable.
Low-temperature impact test sample |
Standard |
Weight of the drop hammer (g) |
The height of the impact mm |
Remark |
The socket box and the similar electrical enclosure |
GB2099.1-2008 clause24.4, figure 27 |
1000±2 |
100 |
standard |
The bolt with insulation sheath |
GB2099.1-2008 clause30.4, figure 42 |
100±1 |
100 |
standard |
The electric cable with PVC sheath |
GB2951.4 clause8.5,figure 2 |

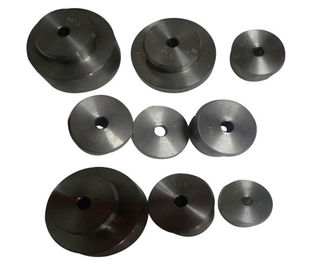

100,200,300,400, 500,600,750,1000,1250,1500g |
100 |
Optional |
For the samples of laying of cable, the weight of the drop hammer required are as follows:
The external diameter of the samples(D/mm) |
The weight of the drop hammer /g |
D≤4.0 |
100 |
4.0<D≤6.0 |
200 |
6.0<D≤9.0 |
300 |
9.0<D≤12.5 |
400 |
12.5<D≤20.0 |
500 |
20.0<D≤30.0 |
750 |
30.0<D≤50.0 |
1000 |
50.0<D≤75.0 |
1250 |
75.0<D |
1500 |
For the samples of flexible cable and telecommunication cable, the weight of the drop hammer required is as follows:
The external diameter of the sample D/mm |
The weight of drop hammer /g |
D≤6 |
100 |
6.0<D≤10.0 |
200 |
10.0<D≤15.0 |
300 |
15.0<D≤25.0 |
400 |
25.0<D≤35.0 |
500 |
35.0<D |
600 |
