GB/T4288-2008 Electrical Appliance Tester

GB/T4288-2008 Electrical Appliance Tester

  • GB/T4288-2008 Electrical Appliance Tester
  • GB/T4288-2008 Electrical Appliance Tester
GB/T4288-2008 Electrical Appliance Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: FL-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
High Light:

electrical appliance tester


portable appliance tester

Pipe Bending Tester For Washing Machine , Drain Pipes For Washing Machines Tester
Product information:
This tester is according to GB/T4288-2008 standard of household electric washing machine to design and manufacture, suitable for water inlet and drain-pipe of the washing machines for bending life test, it can also suitable for bending test of the power cord.
This instrument uses PLC control, 7-inch color touch screen operation to setup parameters, and by a stepping motor and synchronous belt drive to achieve manipulator reciprocal pendulum movements, thus to test the bending performance of the water inlet and drain-pipe of the washing machines. The number of test times, angle and speed can be preset, it will automatically shut down when arrive to the preset times.
This device consists of:
1. PLC control system + touch screen operation system
2. Stepping motor and synchronous belt drive system
3. Fixtures
Technical specifications and parameters:

Control way

PLC control,7 inch touch screen

Display mode

Touch screen display

Rack construction

High-grade aluminum, coating steel, stainless steel, etc.

Power supply

AC 220V 50HZ

Specimen clamping mechanism

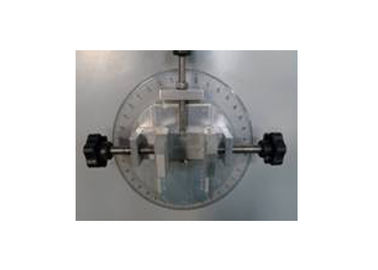

A convenient and accurate specimen card installed, eccentricity 60mm,

clamping test range 0-60mm, both suitable for water inlet and drain-pipe

bending test and bending test of the power cord

Working speed

50±10 per minute,speed is adjustable

Counter test and nodal points

0-999999 can be preset;

First the sample bend  0-90 ° from vertical position to the left side,

count after it come back to the vertical position, and then bend 0-90°from

the right side, count again when come back to vertical position, it will not

make any stop during the middle vertical position

Bending angle

0-180°adjustable ,right and left each is 0-90°,adjustable


Single station

Operating environment

Normal temperature

Meet the standards
