GB4706-1 / GB4943 Electrical Appliance Tester

GB4706-1 / GB4943 Electrical Appliance Tester

  • GB4706-1 / GB4943 Electrical Appliance Tester
  • GB4706-1 / GB4943 Electrical Appliance Tester
  • GB4706-1 / GB4943 Electrical Appliance Tester
GB4706-1 / GB4943 Electrical Appliance Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: IPD-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
High Light:

electrical appliance tester


portable appliance tester

Tilt Test Bench , Inclining Test Bench



Product information:

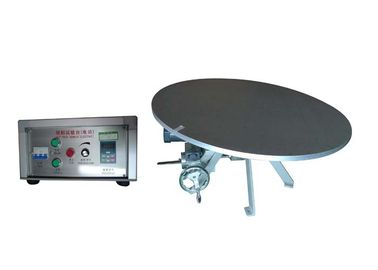

This device complies with the standards of GB4706-1, GB4943 and GB8898 and IEC60335-1 and so on, the test bench consists of a work surface and an angle adjustment device, is suitable for all types of audio and video products, home appliances, kitchen equipments and similar electrical appliances doing mechanical stability test. The test sample was placed on the table to test its mechanical stability performance by different angle inclined.



Technical specification and parameter configuration


Working condition:

Environment:0℃~+40℃;Working power supply:220V±10%   50Hz

Technical index:

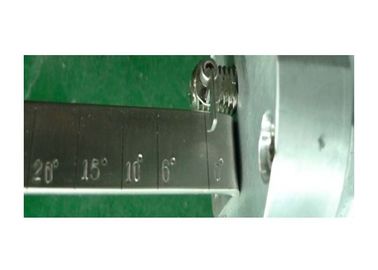

1, Tilt angle:0-45°stepless adjustable;0°,6°,10°,15°,20°,45°are fixed gear and display,equipped with angle measuring instrument calibration, easy to operate, high accuracy angle, precision ±1°;

2, The maximum weight load:100kg,(load can be improved as per customer requirements)aluminum plate sandblasting and the surface is not smooth;

3, There are reliable earthing contact and power plug connector on the test bench of accessible metal surface;

4, Table diameter: 1000mm;

5, The test bench with stable whole structure, and beautiful appearance

Basic Configuration:

1,A set of Speed changing box;

2,A set of Speed ​​AC motor drives;

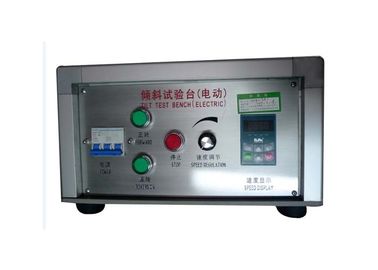

3,A set of Electrical control box;

4,One piece of Tilting platen;

5,Usual manual;
