GB4706-1 / GB4943Electrical Appliance Tester Tilt Inclining Test Bench

GB4706-1 / GB4943Electrical Appliance Tester Tilt Inclining Test Bench

  • GB4706-1 / GB4943Electrical Appliance Tester Tilt Inclining Test Bench
  • GB4706-1 / GB4943Electrical Appliance Tester Tilt Inclining Test Bench
  • GB4706-1 / GB4943Electrical Appliance Tester Tilt Inclining Test Bench
GB4706-1 / GB4943Electrical Appliance Tester Tilt Inclining Test Bench
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: IPD-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Highlight:

electrical appliance tester

,

portable appliance tester

Tilt Test Bench , Inclining Test Bench





Product information:



This device complies with the standards of GB4706-1, GB4943 and GB8898 and IEC60335-1 and so on, the test bench consists of a work surface and an angle adjustment device, is suitable for all types of audio and video products, home appliances, kitchen equipments and similar electrical appliances doing mechanical stability test. The test sample was placed on the table to test its mechanical stability performance by different angle inclined.





Technical specification and parameter configuration



Working condition:

Environment:0℃~+40℃;Working power supply:220V±10%   50Hz

Technical index:

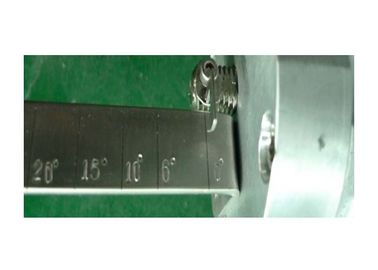

1, Tilt angle:0-45°stepless adjustable;0°,6°,10°,15°,20°,45°are fixed gear and display,equipped with angle measuring instrument calibration, easy to operate, high accuracy angle, precision ±1°;

2, The maximum weight load:100kg,(load can be improved as per customer requirements)aluminum plate sandblasting and the surface is not smooth;

3, There are reliable earthing contact and power plug connector on the test bench of accessible metal surface;

4, Table diameter: 1000mm;

5, The test bench with stable whole structure, and beautiful appearance

Basic Configuration:

1,A set of Speed changing box;

2,A set of Speed ​​AC motor drives;

3,A set of Electrical control box;

4,One piece of Tilting platen;

5,Usual manual;







About us :



HongTong Electromechanical Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
