Electric Iron Drop Test Apparatus Mechanical Strength Test Machine IEC60335-2-3

Brand Name:	HongCe
Model Number:	EID-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	15 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Standard:

IEC60335-2-3 Clause 21.101

Drive Method:

Motor

Station:

Single

Working Speed:

≤20 R/minute

Packaging Details:

Plywood

Highlight:

electrical appliance tester

portable appliance testing equipment

Product Description

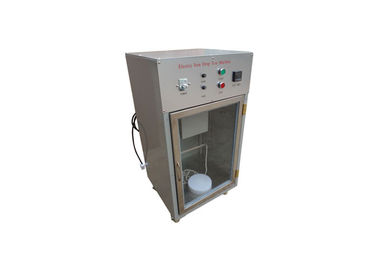

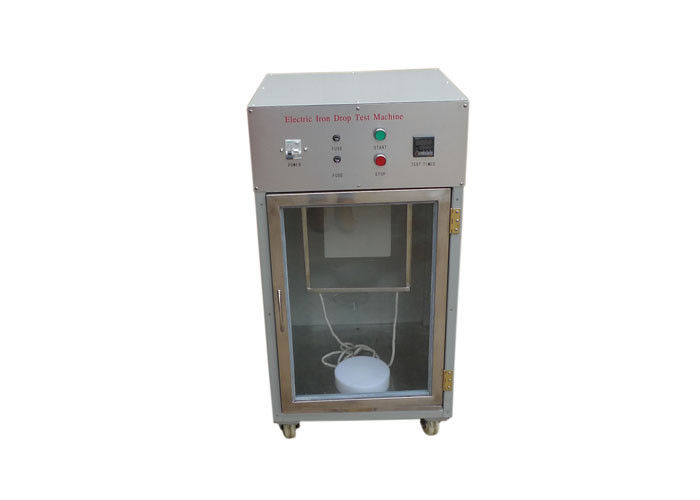

Drop Test Apparatus For Electric Iron Drop , Iron Drop Testing Machines

Product information:

To check the mechanical strength of electric irons by repeated drop onto a steel plate according to IEC60335-2-3 clause 21.101.
The electric iron is operated under normal operation at rated power input and, except for cordless irons; the soleplate temperature is maintained under these conditions throughout the test.

Standard Outfit:

1 steel plate, at least 15mm thick, mass at least 15 kg, rigidly supported,
1 lifting device with radial cam for a slow lifting of the specimen for 40 mm, for a sudden release for a free fall and for a rest time on the steel plate of ≈15% of the test duration,
1 gear motor, to drive the lifting device, for 20 drops per minute maximum,
1 falling assembly, with tie-bar for fastening the specimen, with 1 pair of distance pieces 40 mm.
1 switchgear, with main switch, fuses and preset counter to switch off the unit after the preset number of strokes.

Technical parameters:

Model No.	EID-1
Standard	IEC60335-2-3 clause 21.101
Power Supply	AC220V, 50HZ
Drive method	Motor and CAM drive
Station	Single
Test Times	1~999999, adjustable
Working Speed	≤20 r/minute
Dropping Height	40mm
Dimension (mm)	500520980/ 5305601050
