TUV Electrical Appliance Tester CK2 / CK5 Stainless Creepage Distance Test Cards IEC60335

Brand Name:	HongCe
Model Number:	CK-2,CK-5
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Model:

HC9934/HC9934A/HC9934B/HC9934C/HC9934D

Test Sample:

Electrical Conductive Parts

Feature:

Stainless Steel

Standard:

IEC 60884-1 2013 Clause 27, IEC60598, IEC60335

Packaging Details:

Aluminum Box

Highlight:

electrical appliance tester

portable appliance testing equipment

Product Description

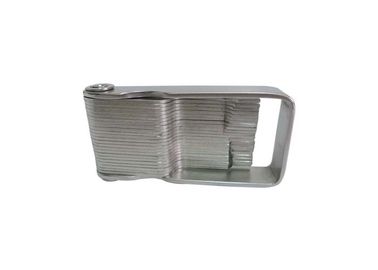

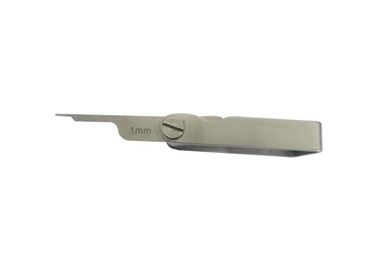

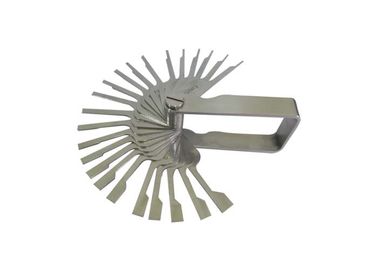

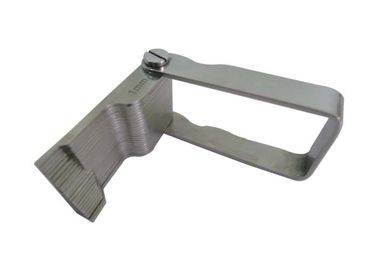

Stainless Creepage Distance Test Cards

Product information:

We have two kinds of Creepage Distances Test Cards, CK2/CK5.These test gauges conforms to IEC60884-1, IEC60598, and IEC60335 etc.They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

Assortments:

Creepage Distance Gauges Type CK2

With 15 creepage distance gauges:

1,0 to 8,0mm in steps of 0,5mm.

Creepage Distance Gauges Type CK5

With 30 creepage distance gauges:

1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm

/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm

Material: Stainless steel

Technical parameters:

Model No.

Size Specification

CK-2

1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8 Total 15 creepage distance gauges

CK-5

1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm

2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm

Total 30 creepage distance gauges
