Electrical Appliance Tester Automatic Cord Reels Endurance Testing Equipment IEC60335-1

Electrical Appliance Tester Automatic Cord Reels Endurance Testing Equipment IEC60335-1

  • Electrical Appliance Tester Automatic Cord Reels Endurance Testing Equipment IEC60335-1
  • Electrical Appliance Tester Automatic Cord Reels Endurance Testing Equipment IEC60335-1
  • Electrical Appliance Tester Automatic Cord Reels Endurance Testing Equipment IEC60335-1
  • Electrical Appliance Tester Automatic Cord Reels Endurance Testing Equipment IEC60335-1
Electrical Appliance Tester Automatic Cord Reels Endurance Testing Equipment IEC60335-1
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: ARE-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
High Light:

electrical appliance tester

,

portable appliance tester

Automatic Cord Reels Endurance Tester





Product information:

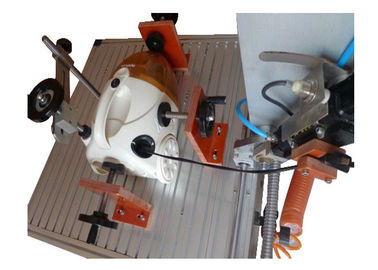

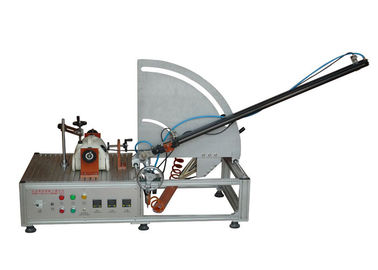

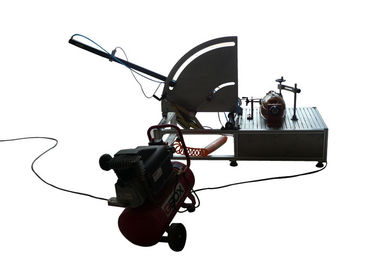

The device is used to detect automatic cord reels, and it conforms to IEC60335-1 clause 22.16.
Two-thirds of the length of the cord is unreeled. If the withdrawable length of the cord is less than 225 cm, the cord is unreeled so that a length of 75 cm remains on the reel. An additional length of 75 cm of the cord is then unreeled and pulled in a direction so that the greatest abrasion occurs to the sheath, taking into account the normal position of use of the appliance. When the cord leaves the appliance, the angle between the axis of the cord during the test and the axis of the cord when it is unreeled without substantial resistance is approximately 60°, the cord is allowed to be recoiled by the reel.

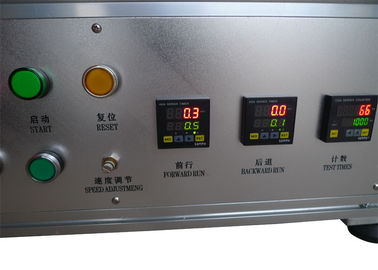

Technical parameters:

1, Power supply:AC220V  50Hz;

2, Working air source:compressed air 5~7kg/cm2

3, Test rate:30 times/min(If the rate allowed by the construction of the cord reel is less than 30 times per minute ,the test is carried out at a maximum rate allowed by the construction of the cord reel.);

4, Test times:0~9999 times,the device will stop working automatically when the preset test times reached.

5, Drive mode:pneumatic;

6, Angle:30~70°adjustable;

7, Include: multi-function clamp

8, Tensile action trip:maximum 1000mm(adjustable)



About us :



HongTong Electromechanical Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
