IEC60335-1 Electrical Appliance Tester Inclined Plane Tester Device For Stability Test

IEC60335-1 Electrical Appliance Tester Inclined Plane Tester Device For Stability Test

  • IEC60335-1 Electrical Appliance Tester Inclined Plane Tester Device For Stability Test
  • IEC60335-1 Electrical Appliance Tester Inclined Plane Tester Device For Stability Test
  • IEC60335-1 Electrical Appliance Tester Inclined Plane Tester Device For Stability Test
  • IEC60335-1 Electrical Appliance Tester Inclined Plane Tester Device For Stability Test
  • IEC60335-1 Electrical Appliance Tester Inclined Plane Tester Device For Stability Test
IEC60335-1 Electrical Appliance Tester Inclined Plane Tester Device For Stability Test
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: IPD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
High Light:

electrical appliance tester

,

portable appliance testing equipment

Inclined Plane Tester Device For Stability Test


Product information:

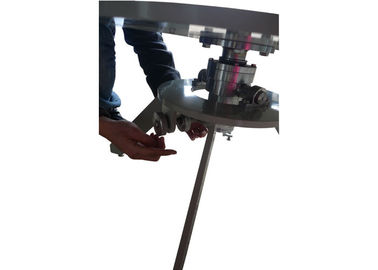

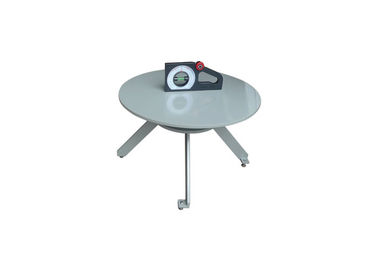

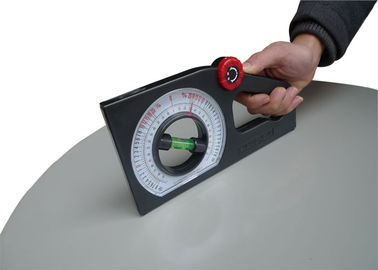

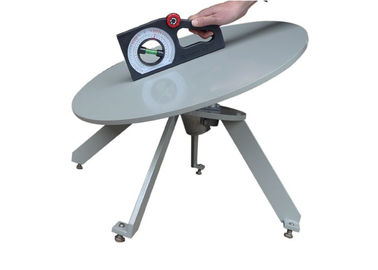

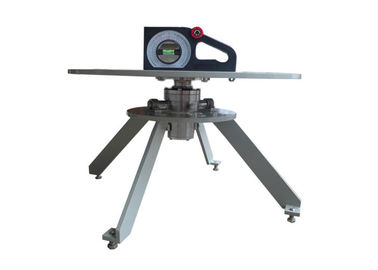

This device is designed and manufactured in accordance with the IEC60335-1 clause 20.1.It is used to test the stability of an apparatus that requires a surface in order to work. The device consists of a surface and an angle adjusting device, with angles 0~15° adjustable.


The appliance is placed in any normal position of use on a plane inclined at an angle of 10° to the horizontal, the supply cord resting on the inclined plane in the most unfavourable position. However, if part of an appliance comes into contact with the horizontal supporting surface when the appliance is tilted through an angle of 10°, the appliance is placed on a horizontal support and tilted in the most unfavourable direction through an angle of 10°.


Appliances provided with doors are tested with the doors open or closed. Appliances intended to be filled with liquid by the user in normal use are tested empty or filled with the most unfavourable quantity of water up to the capacity indicated in the instructions.



Technical parameters:

Model

Plane      diameter

   Plane      material

Angle    range

Bearing capacity

Rotating   mode

Rotating speed

IPD-1

600mm

High quality coating steel plate

0-30°

50kg

By manual/ power-driven

-/1r/min

IPD-2

800mm

High quality coating steel plate

0-30°

80kg

By manual/ power-driven

-/1r/min

IPD-3

1000mm

High quality coating steel plate

0-30°

120kg

By manual/ power-driven

-/1r/min

IPD-4

800*800mm

Anti-skid    board

0-15°

80kg

By manual

-
