Test Finger Probe
Created with Pixso.

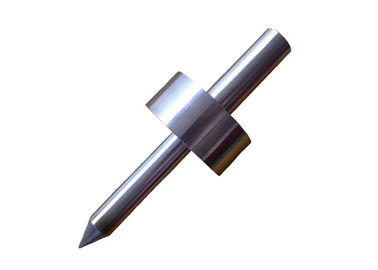

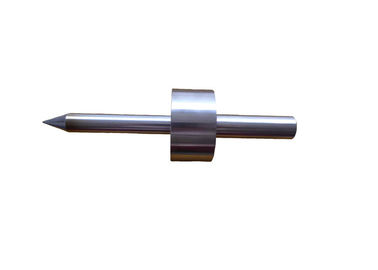

Scratch Resistant Pin Electric Safety Testing Probes IEC60335-1 clause 21

Scratch Resistant Pin Electric Safety Testing Probes IEC60335-1 clause 21

Brand Name: HongCe
Model Number: HT-I34
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 100 set per month
Detail Information
Place of Origin:
China
Certification:
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Pin Head:
A Cone With The Angle Of 40°
Mass:
10±0.5N
Material:
Quenched Steel
Standard:
IEC60335-1 Clause 21 And IEC60950-1
Packaging Details:
Aluminum Box
Highlight:

iec 61032 test probe b

,

iec test finger

Product Description

Scratched Pin Electric Safety Testing Probes





Product information:

The test pin is used to do the scratch resistant test of the electrical solid insulation surface. It conforms to the standard requirement of IEC60335-1 clause 21.

Test method: make sure the angle between the pin and the surface of the sample is 80-85°. Then use the pin which is loaded with the axial force of 10±0.5N to scratch the surface of the sample at a speed of approximately 20mm/s. This test pin can be equipped with 20N weight to reach the load of 30N.This scratched pin shall be used with resistance scratching tester.



Standard:IEC60335-1 clause 21 and IEC60950-1.



Application:The test pin is used to do the scratch resistant test of the electrical solid insulation surface.



Test sample:Home appliance fixed insulation accessible part and coated printed board.



Feature:Test method: make sure the angle between the pin and the surface of the sample is 80-85°. Then use the pin which is loaded with the axial force of 10±0.5N to scratch the surface of the sample at a speed of approximately 20mm/s. This test pin can be equipped with 20N weight to reach the load of 30N.This scratched pin shall be used with resistance scratching tester.



Technical parameters:

Model HT-I34
Pin head A cone with the angle of 40°
Tip is rounded with a radius 0.25mm±0.02mm
Mass 10±0.5N
Material Quenched steel
