IEC60335-2-11 Figure 104 Test Finger Probe Surface Temperature Probe

IEC60335-2-11 Figure 104 Test Finger Probe Surface Temperature Probe

  • IEC60335-2-11 Figure 104 Test Finger Probe Surface Temperature Probe
  • IEC60335-2-11 Figure 104 Test Finger Probe Surface Temperature Probe
  • IEC60335-2-11 Figure 104 Test Finger Probe Surface Temperature Probe
  • IEC60335-2-11 Figure 104 Test Finger Probe Surface Temperature Probe
IEC60335-2-11 Figure 104 Test Finger Probe Surface Temperature Probe
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: HT-I32
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum Box
Delivery Time: 7 Days
Payment Terms: T/T
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Measuring Surface: Φ5*0.5mm Tinned Copper Disc Polycarbonate Tube: Inside Diameter:Φ3; Outside Diameter:Φ5
Thermocouple: Φ0.3K Type Standard: IEC60335-2-11 Figure 101
High Light:

iec test finger

,

iec test equipment

IEC60335-2-11 Figure 104 Surface Temperature Probe

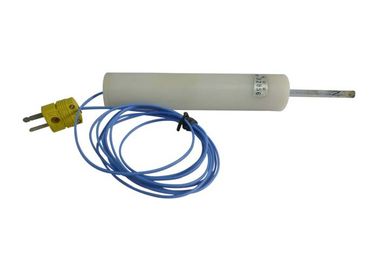

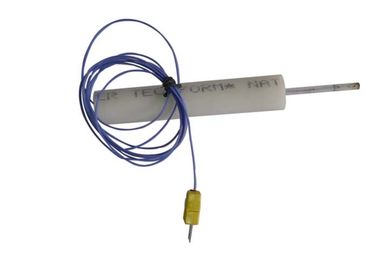

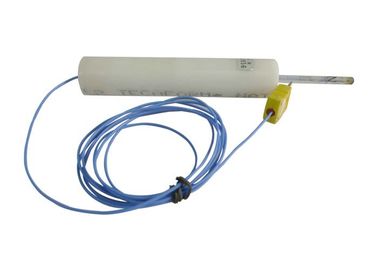

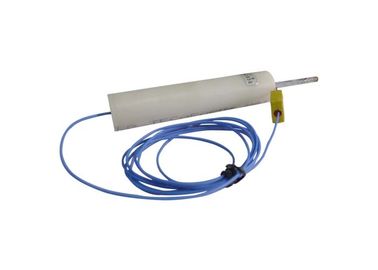

Product information:

This probe conforms to the IEC60335-2-11 figure 104 and IEC60335-2-6-2002 figure 104 standard requirements. It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of drum-type dryer, upright electric cooker, cooking bench and oven.



Standard:IEC60335-2-11 figure 101 and IEC60335-2-6-2002 figure 101.



Application:It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of drum-type dryer, upright electric cooker, cooking bench and oven.



Test sample:Drum-type dryer, upright electric cooker, cooking bench and oven.



Feature:Hand held exterior temperature measurement.





Technical parameters:



Parameters /Model

HT-I32

 Plane of measurement

Φ5*0.5mm tin copper plate

Drive pipe

Inner Φ3,outer Φ5

Thermocouple

Φ0.3K type

Force

4±0.5 N

IEC60335-2-11 Figure 104 Test Finger Probe Surface Temperature Probe 0
