Safety Test Probe IEC61032 figure 9 Test Finger Probe13 Short Test Probe Pin

Safety Test Probe IEC61032 figure 9 Test Finger Probe13 Short Test Probe Pin

  • Safety Test Probe IEC61032 figure 9 Test Finger Probe13 Short Test Probe Pin
  • Safety Test Probe IEC61032 figure 9 Test Finger Probe13 Short Test Probe Pin
  • Safety Test Probe IEC61032 figure 9 Test Finger Probe13 Short Test Probe Pin
  • Safety Test Probe IEC61032 figure 9 Test Finger Probe13 Short Test Probe Pin
Safety Test Probe IEC61032 figure 9 Test Finger Probe13 Short Test Probe Pin
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: HT-I09
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum Box
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Metal Pin Tip Diameter: Ф3(0,-0.05) Metal Pin Length: 15(0, -0.1)
Baffle Diameter: Ф25±0.2 Handle Diameter: Ф10
High Light:

iec test finger

,

iec test equipment

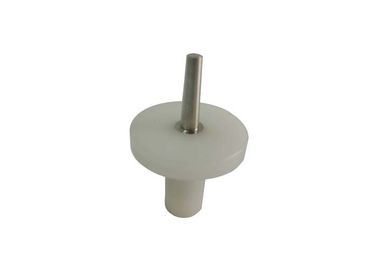

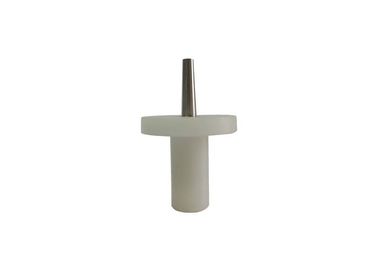

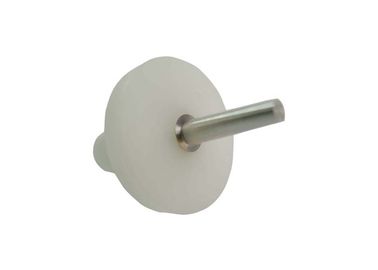

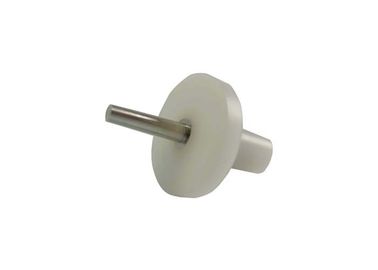

Safety Test Probe 13 IEC61032 Fig. 9 Short Test Probe Pin



Product information:

This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment. It conforms to IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065 standard requirements.

Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).

Standard:IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065.

Application:This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).


Technical parameters:

ModelHT-I09
NameShort test pin probe
Metal pin tip diameterФ3(0,-0.05)
Metal pin tail diameterФ4(0,-0.05)
Metal pin length15(0, -0.1)
Baffle diameterФ25±0.2
Baffle thickness4
Handle diameter Ф10
Handle length20

Safety Test Probe IEC61032 figure 9 Test Finger Probe13 Short Test Probe Pin 0



IEC61032 test standard: Protection of persons and equipment by enclosures-Probes for verification

Protection of persons and equipment by enclosures-Probes for verification



General:

Scope and object:

This international standard specifies details and dimensions of test probes intended to verify the protection provided by enclosures with regard to:

Protection of persons against access to hazardous parts inside the enclosure;

Protection of the equipment inside the enclosure against ingress of solid foreign objects.

The object of this international standard is:

To bring together in one publication object probes and access probes currently specified in other standards, together with any necessary new probes;

To guide technical committees in the selection of test probes;

To encourage those concerned to specify test [probes in accordance with those already specified in this international standard rather than modify details and dimensions;

To limit the further proliferation of types of test probes.
