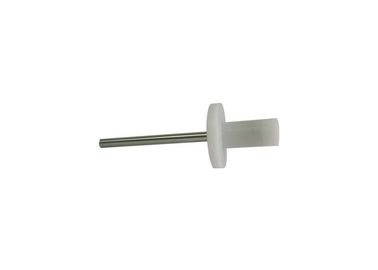

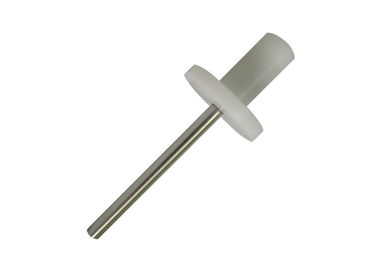

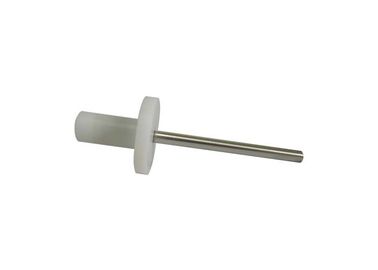

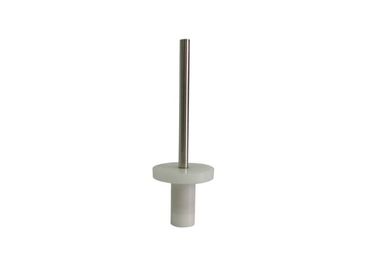

IEC61032 Figure 8 Test probe 12 , 50mm Long Test Finger Probe

IEC61032 Figure 8 Test probe 12 , 50mm Long Test Finger Probe

  • IEC61032 Figure 8 Test probe 12 , 50mm Long Test Finger Probe
  • IEC61032 Figure 8 Test probe 12 , 50mm Long Test Finger Probe
  • IEC61032 Figure 8 Test probe 12 , 50mm Long Test Finger Probe
  • IEC61032 Figure 8 Test probe 12 , 50mm Long Test Finger Probe
IEC61032 Figure 8 Test probe 12 , 50mm Long Test Finger Probe
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: HT-I08
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum Box
Delivery Time: 7 Days
Payment Terms: T/T
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Metal Pin Diameter: Ф4±0.05 Metal Pin Length: 50±0.15
Baffle Diameter: Ф25±0.2 Baffle Thickness: 4
High Light:

iec test finger

,

iec test equipment

IEC61032 Figure 8 Test probe 12 , 50mm Long Test Pin Probe





Product information:

This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use. It meets IEC61032 figure 8 test probe 12. Handle is made of nylon while the tip is made of hardened steel.

Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).

Standard:IEC61032 figure 8 test probe 12.

Application:This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).



Main specification and corresponding technical parameters:



Parameters /Model

Long test pin probe HT-I08

1

Ф4±0.05

2

50±0.15

3

Ф25±0.2

4

4

5

Ф10

6

20

IEC61032 Figure 8 Test probe 12 , 50mm Long Test Finger Probe 0
