220V Oxygen Air Bomb Aging Test Chamber With Intelligent Control GB/T2951.12-2008

Brand Name:	HongCe
Model Number:	YLH-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Packaging Details:

Plywood

Highlight:

power cable tester

electric wire tester

Product Description

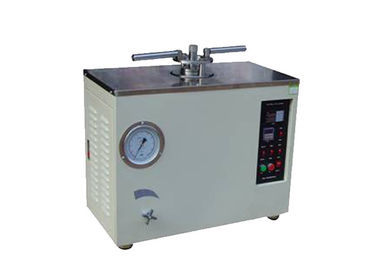

Oxygen (Air) Bomb Aging Chamber

Product information:

This aging tester conforms to the standard requirements of GB/T2951.12-2008 and GB/T5013－2008 as well as VDE. It is applicable for the aging test of the electric wire, the insulation layer and sheath of the rubber ( plastic,artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.

Technical parameters:

1, Power voltage:220V(AC)±10%

2, Maximum working pressure: 2.5MP

3, Secure blow -up pressure: 2.7～3.3MP

4, the self-control temperature range: indoor temperature 0～200℃

5, Cabinet size:560×420×670mm

6, Cubage:4000mm³

7, Heater power:2.4KW

8, Temperature alarm:0～200℃ adjustable

9, Temperature deviation:±0.5℃

10, Temperature control:digital display

11, Temperature control:intelligent control

12, Material of jar:inside is stainless steel and outside electrostatic spraying steel plate

13, Dimension of jar:diameter123× high 337mm
