UL60950-1 Figure NAF2-3 Accessibility Wedge Probe Tip Thickness 2mm

Brand Name:	HongCe
Model Number:	HT-U14
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 sets/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Product Name:

Accessibility Wedge/Probe

Warranty:

1 Year

Standards:

IEC 62368-1, UL60950-1 And Etc.

Material:

Stainless Steel

Usage:

Testing Document Shredders

Probe Tip Width:

50mm

Probe Tip Thickness:

2mm

Lead Time:

3 Days

Packaging Details:

Aluminum Box

Highlight:

Figure NAF2-3 Accessibility Wedge Probe

UL60950-1 Accessibility Wedge Probe

Thickness 2mm Accessibility Wedge Probe

Product Description

UL60950-1 Figure NAF2-3 Accessibility Wedge, Probe Tip Thickness 2mm

Standard description(UL60950-1 clause F.4.4):
For HOUSEHOLD / HOME OFFICE DOCUMENT SHREDDERS , a warning statement shall not be used in lieu of construction features that prevent access to hazardous moving parts. Test Finger Probe
For HOUSEHOLD / HOME OFFICE DOCUMENT SHREDDERS , the Following additional compliance criteria apply:
The accessibility probe/wedge illustrated in figures NAF.2 and NAF.3 shall be inserted into each opening in the MECHANICAL ENCLOSURE . A force not exceeding 45 N for strip-cut type HOUSEHOLD / HOME OFFICE DOCUMENT SHREDDERS and not exceeding 90 N for cross-cut
type HOUSEHOLD / HOME OFFICE DOCUMENT SHREDDERS shall be applied to the probe/wedge in any direction relative to the opening. Before application of the accessibility probe/wedge, any MECHANICAL ENCLOSURES or guards that are removable without the use of a tool shall be removed. The probe/wedge shall not contact hazardous moving parts, including shredding rollers/mechanisms.
NOTE It is permissible for the mass of the accessibility probe/wedge to be factored into the overall applied force specified above.

Standard: IEC 62368-1 Figure V.4, UL60950-1 figure NAF.2 and NAF.3 and etc. Test Finger Probe

Application: It is used to test whether the hazardous parts of shredder can be touched by people.

Test sample: Paper shredder

Feature: It is manufactured according to the standard figure.

Parameters: Test Finger Probe

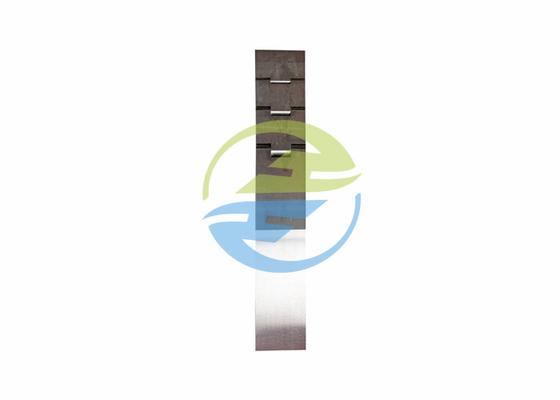

UL60950-1 Figure NAF2-3 Accessibility Wedge Probe Tip Thickness 2mm 0

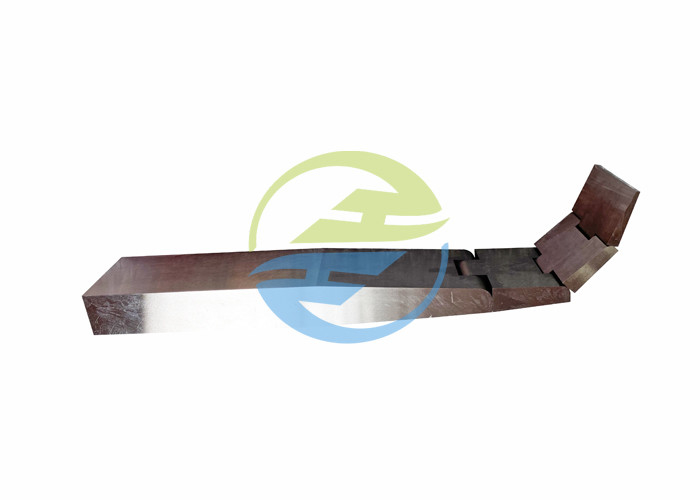

UL60950-1 Figure NAF2-3 Accessibility Wedge Probe Tip Thickness 2mm 1

NOTE The thickness of the probe varies linearly, with slope changes at the following points along the probe:

Distance from probe tip mm	Probe thickness mm
0	2
12	4
180	24

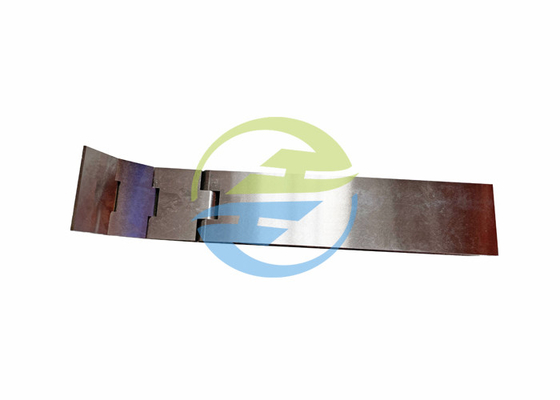

Picture for reference:

UL60950-1 Figure NAF2-3 Accessibility Wedge Probe Tip Thickness 2mm 2
