| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HDX1302 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per month |
| Standard: | IEC60245-2, IEC60065 | Load Current: | 0-25A |
|---|---|---|---|
| Voltage Loading: | 0-400V | Testing Speed: | 0.33m/S |
| Test Stroke: | 1000±20mm | Suitable Cores: | 2-18 |
| Name: | Flexible Cable Testing Equipment | Warranty: | 1 Year |
| High Light: | Stroke 1000m Flexible Cable Testing Equipment,400V Flexible Cable Testing Equipment,0.33m/S Cable Testing Equipment |
||
Test Stroke 1000m Flexible Cable Testing Equipment, 0-400V Voltage loading
Standard description:
This test shall be carried out by means of the apparatus shown in figure 1 . This apparatus consists of a carrier C, a driving system for the carrier and four pulleys for each Sample of cable to be tested. The carrier C supports two pulleys A and B, which are of the same diameter. The two fixed pulleys, at either end of the apparatus, may be of a different diameter from pulleys A and B, but all four pulleys shall be so arranged that the sample is horizontal between them. The carrier makes cycles (forward and backward movements) over a distance of 1 m at an approximately constant speed of 0,33 m/s between each reversal of the direction of movement. Cable Testing Equipment
The pulleys shall be made of metal and have a semi-circular shaped groove for circular cables and a flat groove for flat cables. The restraining clamps D shall be fixed so that the pull is always applied by the weight from which the carrier is moving away. The distance from one restraining clamp to its support, while the other clamp is resting on its support, shall be of 5 cm maximum.
The driving system shall be such that the carrier turns smoothly and without jerks when it reverses from one direction to another.
A sample of flexible cable about 5 m long shall be stretched over the pulleys, as shown in figure 1 , each end being loaded with a weight. The mass of this weight and the diameter of pulleys A and B are given in table 1 . Cable Testing Equipment
Standard figure:
Standard:IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 clause 3.1 Figure 1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.
Application:It is used for checking mechanical strength of completed flexible cables. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm2 and cables having more than 18 cores laid up in more than two concentric layers.
Test sample:Completed flexible cables. Cable Testing Equipment
Parameters:
| Power supply | AC 220V/ 50HZ |
| Current loading of cores | 0-25A |
| Voltage loading | 0-400V |
| Testing speed | 0.33m/S |
| Testing distance | 1000±20mm |
| Suitable cores | 2-18 Cable Testing Equipment |
| Nominal cross-sectional area | 0.2~4mm2 |
| Diameter of pulleys | 60,80,120,160,200mm ( Customer optional: Standard equipped 3pcs) |
| Combined weights | 0.5kg, 1kg, 1.5kg, 2kg, 2.5kg, 3kg, 3.5kg, 4kg, 6kg, 7.5kg, 8kg |
| Fault testing | Current interruption, short circuit between conductors, test and short circuit between the pulley. |

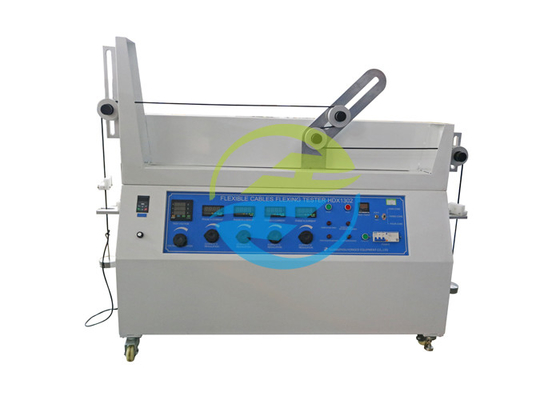

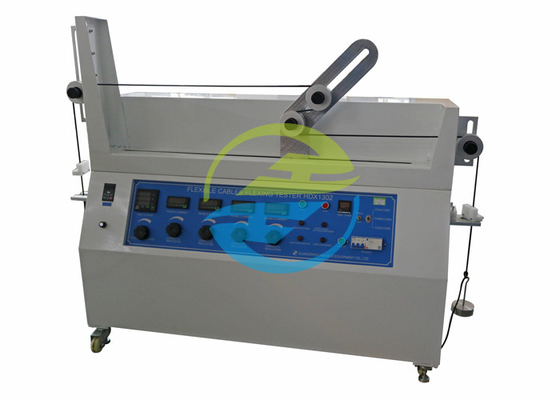

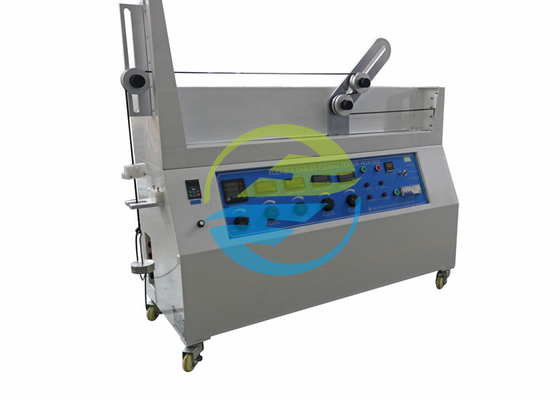

Picture for reference:
