Test Finger Probe
Created with Pixso.

ISO 20653 Test Finger Probe Test Probe 2 - 12.5mm Steel Ball Tolerance 0.05mm

ISO 20653 Test Finger Probe Test Probe 2 - 12.5mm Steel Ball Tolerance 0.05mm

ISO 20653 Test Finger Probe Test Probe 2 - 12.5mm Steel Ball Tolerance 0.05mm

Brand Name: HongCe
Model Number: HT-I06A
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 100 set/ month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
calibration certificate(cost additional)
Product Name:
Test Probe 2
Warranty:
1 Year
Standard:
ISO 20653, IEC60529 IP2
Material:
Nylon+Stainless Steel
Steel Ball Diameter:
SФ12.5+0.05
Handle Length:
100
Guard Diameter:
10
Guard Thickness:
4
Packaging Details:
Aluminum Box
Highlight:

ISO 20653 Test Finger Probe

,

12.5mm Steel Test Finger Probe

,

IP2 Test Finger Probe

Product Description

ISO 20653 Test Finger Probe Test Probe 2 - 12.5mm steel ball Tolerance 0.05mm



Standard:ISO 20653, IEC61032 figure 6 probe 2,IEC60529 of IP2.

Application:It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 12.5mm or greater.                        Test Finger Probe

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:Steel ball, rigid test. Made in strict accordance with standards.                                         Test Finger Probe



Parameters:

Model HT-I06A
Name Test probe 2 steel ball
Steel ball diameter SФ12.5+0.05 0
Force ----
Handle length About 100
Guard diameter 10
Guard thickness 4
Applied standard ISO 20653
Standard figure:
ISO 20653 Test Finger Probe Test Probe 2 - 12.5mm Steel Ball Tolerance 0.05mm 0

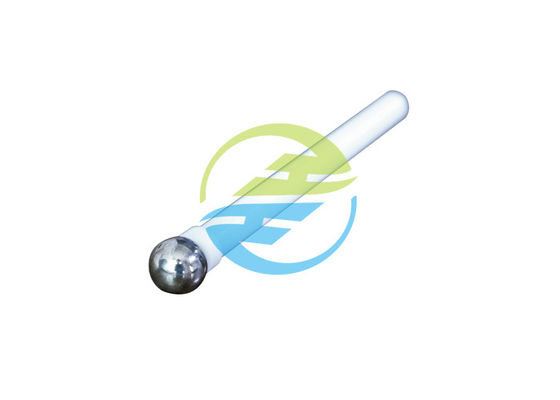

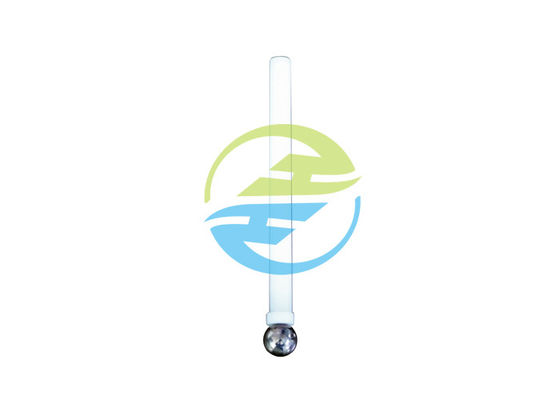

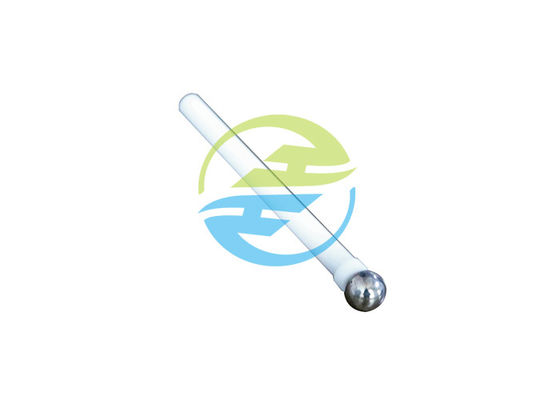

Picture for reference:
ISO 20653 Test Finger Probe Test Probe 2 - 12.5mm Steel Ball Tolerance 0.05mm 1
