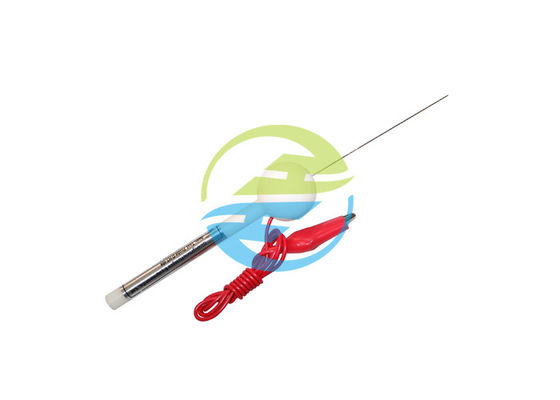

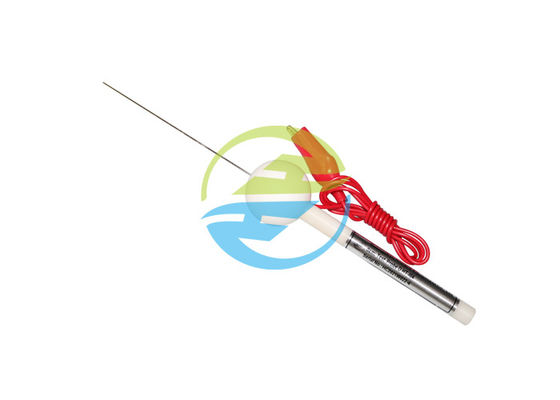

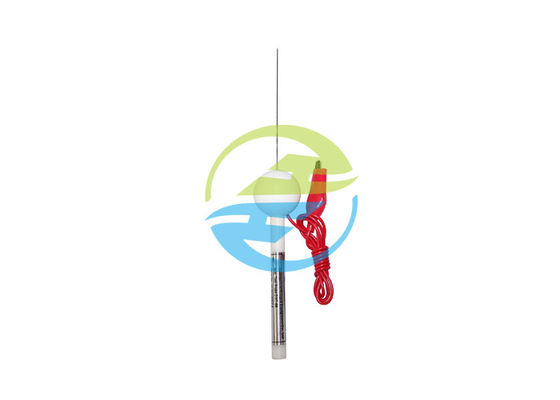

IEC 60065 Test Probe D 1mm Diameter 100mm Length For Hazardous Live Test

IEC 60065 Test Probe D 1mm Diameter 100mm Length For Hazardous Live Test

  • IEC 60065 Test Probe D 1mm Diameter 100mm Length For Hazardous Live Test
  • IEC 60065 Test Probe D 1mm Diameter 100mm Length For Hazardous Live Test
  • IEC 60065 Test Probe D 1mm Diameter 100mm Length For Hazardous Live Test
IEC 60065 Test Probe D 1mm Diameter 100mm Length For Hazardous Live Test
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HT-I04
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum box
Delivery Time: 3 working days
Payment Terms: T/T
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Product Name: Test Probe D Warranty: 1 Year
Usage: Electric Safety Test Handle Diameter: Ф10
Sphere Diameter: SФ35±0.2 Probe Length: 100MM
Probe Diameter: 1MM Standards: IEC60065
High Light:

IEC 60065 Test Probe

,

1mm Diameter Test Probe

,

Hazardous Live Test Finger Probe

IEC 60065 Test Probe D 1mm Diameter 100mm Length for HAZARDOUS LIVE TEST



IEC60065 Clause 9.1 .4 TERMINALS
The use of a single-pole plug or a bare wire to make connection with a contact of a TERMINAL for earth or antenna or for audio, video or associated signals, shall not involve the risk of an electric shock.
The test is not applied to TERMINALS marked with the symbol of 5.3 b).              Test Finger Probe
NOTE See also 1 5.1 .2.
Compliance is checked by the following tests:
Within 25 mm measured from each contact of the TERMINAL , a test pin according to IEC 61032:1997, test probe D, however limited in length to 20 mm ± 0,2 mm, is applied in every possible position, in case of doubt with a force of 10 N ± 1 N.
Each contact is tested with a straight test probe according to IEC 61032:1997, test probe D, in case of doubt with a force of 1 N ± 0,1 N.
The test probes shall not become HAZARDOUS LIVE                         Test Finger Probe

Standard:IEC61032 figure 4 and IEC60529 for IP4 and IEC60065.

Application:This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

Test sample:Easily accessible enclosure live parts or mechanical parts.                                                  Test Finger Probe

Feature:It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.              Test Finger Probe



Parameters:

Model HT-I04
Name Test rod probe D
Diameter of the metal wire Ф1+0.05
Sphere diameter SФ35±0.2
Handle diameter Ф10
Probe length 100±0.2
Handle length 100
Force ----
Applied standard IEC61032.1
