IEC 60065 Test Probe C 2.5mm Diameter 100mm Length For Hazardous Live Test

Brand Name:	HongCe
Model Number:	HT-I03
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Product Name:

Test Probe

Warranty:

1 Year

Usage:

Electric Safety Test

Material:

Plastic + Stainless Steel

Color:

White

Probe Length:

100MM

Probe Diameter:

2.5MM

Standards:

IEC60065

Packaging Details:

Aluminum box

Highlight:

IEC 60065 Test Probe

100mm Length Test Probe

2.5mm Diameter Test Probe

Product Description

IEC 60065 Test Probe C 2.5mm Diameter 100mm Length for HAZARDOUS LIVE TEST

IEC60065-2014 Clause 9.1 .5 Pre-set controls
If a hole giving access to pre-set controls is marked as such on the enclosure or in the instruction for use, and the setting of this control requires a screwdriver or other tool, the adjustment of the control shall not involve the risk of an electric shock.
Compliance is checked by applying to the opening a test probe according to IEC 61032:1997, test probe C.
The test probe is applied in every possible position, in case of doubt with a force of 10 N ± 1 N.
The test probe shall not become HAZARDOUS LIVE. Test Finger Probe

Standard:IEC61032 figure 3 and IEC60529 for IP3 and IEC60065.

Application:This rod is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a tool. Test Finger Probe

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) . Test Finger Probe

Parameters:

Model	HT-I03	HT-I03T
Name	Test rod probe C	Test rod probe C with force
Probe diameter	Ф2.5+0.05 0	Ф2.5+0.05 0
Sphere diameter	SФ35±0.2	SФ35±0.2
Handle diameter	Ф10	Ф10
Probe length	100±0.2	100±0.2
Handle length	100	----
Force	----	With force of 3N
Applied standard	IEC61032.1	IEC60529

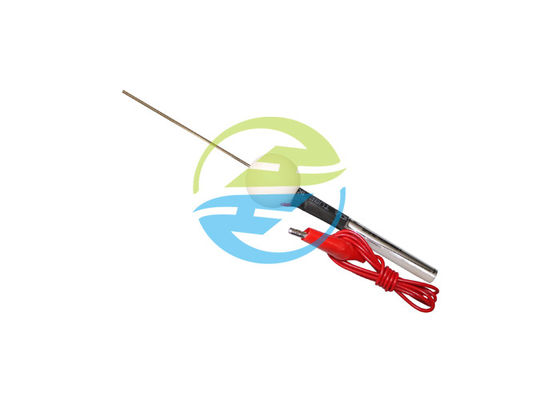

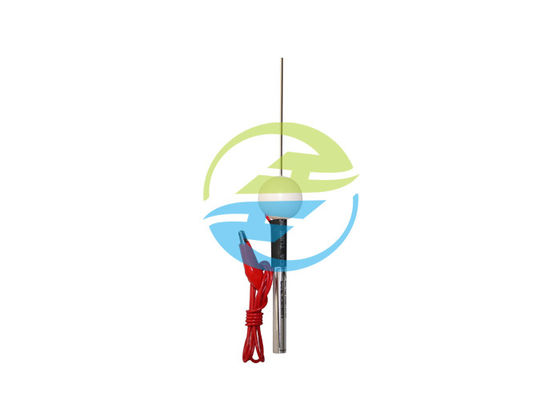

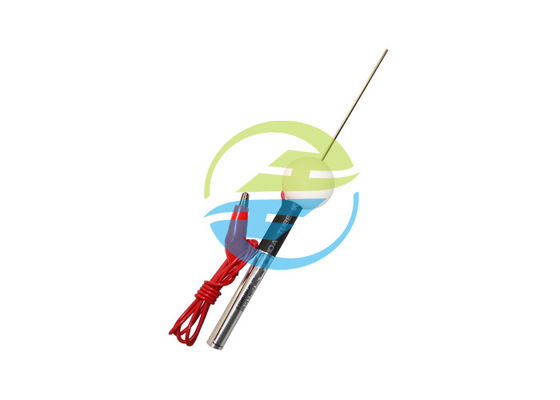

Picture for reference:

IEC 60065 Test Probe C 2.5mm Diameter 100mm Length For Hazardous Live Test 0

IEC 60065 Test Probe C 2.5mm Diameter 100mm Length For Hazardous Live Test 1
