Diameter 50mm Test Probe A Made Of Stainless Steel And Nylon , Accord With IEC60529 IP1

Brand Name:	HongCe
Model Number:	HT-I01
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Product Name:

Test Probe A

Material:

Plastic + Stainless Steel

Color:

White

Warranty:

1 Year

Oem:

Yes

Lead Time:

Within Very Short Time

Standards:

IEC61032, IEC60529

Baffle Plate Diameter:

45mm

Packaging Details:

Aluminum box

Highlight:

Diameter 50mm Test Probe

IEC 60529 Test Probe

Stainless Steel Nylon Test Probe

Product Description

Diameter 50mm Test Probe A Made Of Stainless Steel And Nylon, Accord With IEC60529 IP1

Product introduction: This probe made of stainless steel and nylon, the sphere made of stainless steel, the baffle and handle made of nylon. The diameter of sphere is 50mm. Baffle diameter is 45mm. Baffle thickness is 4 mm. Handle diameter is 10mm. Handle length is 100mm. It has no force, but there is an M6 threaded hole at the end of the handle to connect the push-pull meter.

Standard:IEC61032 fig.1, IEC60529 IP1 and IEC60065.

Application:This probe is intended to verify protection the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .

Parameters:

Model	HT-I01
Name	Test probe A
Rigid test ball diameter (metal)	SФ50+0.05 0
Baffle diameter (nylon)	Ф45±0.2
Baffle thickness	4
Handle diameter	Ф10
Handle length (nylon)	100
Force	----

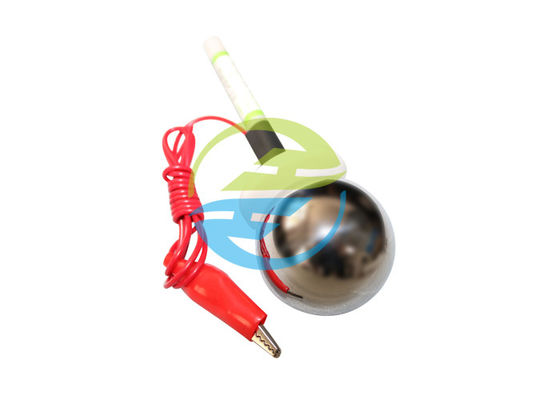

Diameter 50mm Test Probe A Made Of Stainless Steel And Nylon , Accord With IEC60529 IP1 0

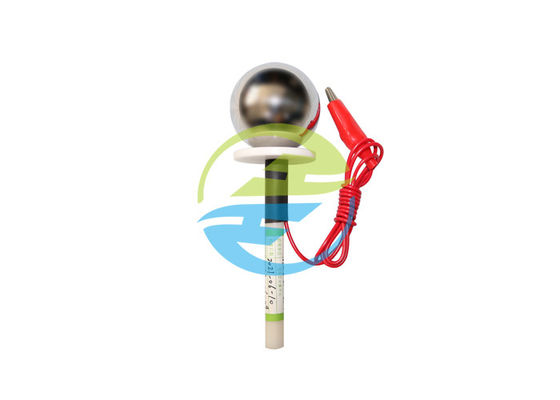

Diameter 50mm Test Probe A Made Of Stainless Steel And Nylon , Accord With IEC60529 IP1 1

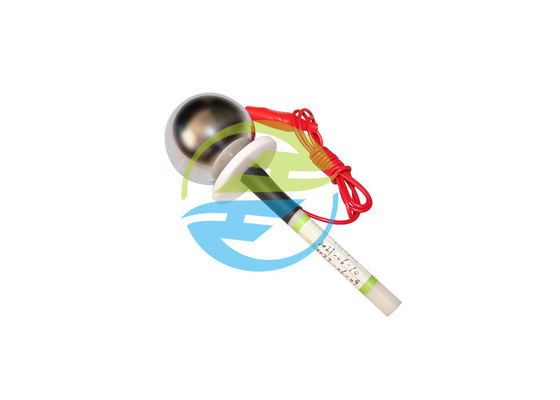

Diameter 50mm Test Probe A Made Of Stainless Steel And Nylon , Accord With IEC60529 IP1 2
