IEC61032 Test Finger Probe Test Probe D 35mm Sphere Diameter 1mm Wire Diameter

Brand Name:	HongCe
Model Number:	HT-I04
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Product Name:

Test Probe D

Warranty:

1 Year

Standard:

IEC61032, IEC60529, IEC60065 And Etc.

Sphere Diameter:

SФ35±0.2

Wire Diameter:

Material:

Nylon + Stainless Steel

Application:

Access Probes Of IEC 60529 (IP Code)

Color:

White

Packaging Details:

Aluminum box

Highlight:

IEC 61032 Test Finger Probe

1mm Test Finger Probe

Product Description

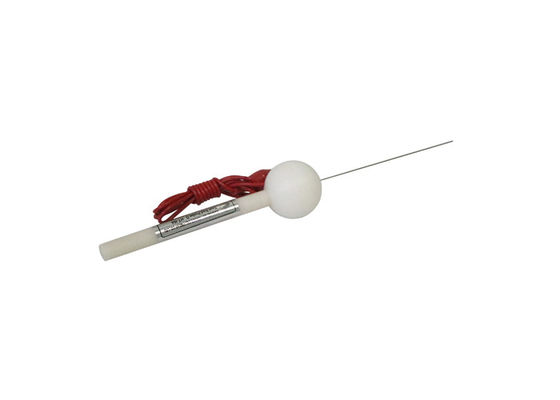

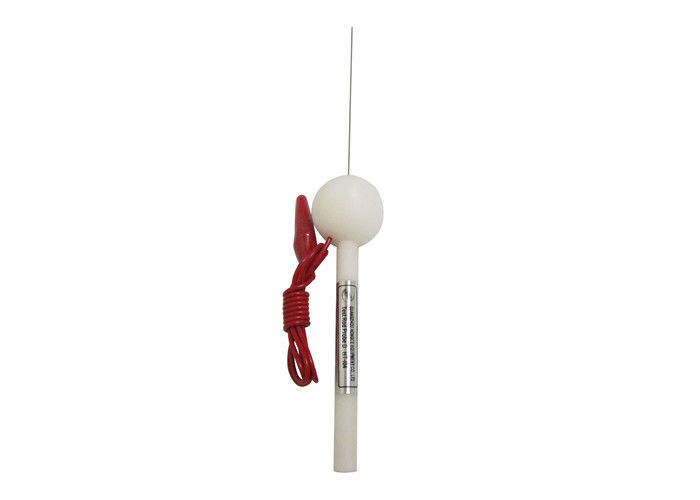

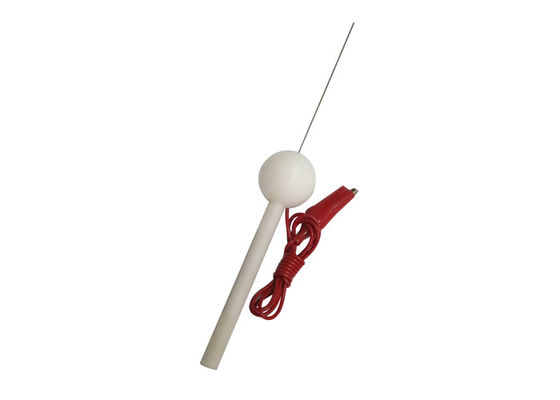

IEC61032 Test Finger Probe Test Probe D 35mm Sphere Diameter 1mm Wire Diameter

Application:This rod probe is intended to verify the protection of persons against access to hazardous live parts or hazardous mechanical parts. It is also used to verify the protection against access with a wire.

Test probe D is also used to verify the protection of equipment against ingress of solid foreign objects having a diameter of 1 mm or greater respectively.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.

Parameters:

Model	HT-I04	HT-I04T
Name	Test rod probe D	Test rod probe with force
Diameter of the metal wire	Ф1+0.05 0	Ф1+0.05 0
Sphere diameter	SФ35±0.2	SФ35±0.2
Handle diameter	Ф10	Ф10
Probe length	100±0.2	100±0.2
Handle length	100	----
Force	----	With force of 1N
Applied standard	IEC61032.1	IEC60529

IEC61032 Test Finger Probe Test Probe D 35mm Sphere Diameter 1mm Wire Diameter 0

IEC61032 Test Finger Probe Test Probe D 35mm Sphere Diameter 1mm Wire Diameter 1
